| • AEC-Q100 qualified |
| • Operating DC supply voltage range
5.6 V to 40 V |
| • Low dropout voltage |
| • Low quiescent current |
| • Precision output voltage 5 V ±2% |
| • Very wide stability range with low value output
capacitor |
| • Thermal shutdown and short-circuit protection
|
| • Wide temperature range (Tj
= -40 °C to 150 °C) |
|
| CATALOG |
| L5150BNTR COUNTRY OF ORIGIN |
| L5150BNTR PARAMETRIC INFO |
| L5150BNTR PACKAGE INFO |
| L5150BNTR MANUFACTURING INFO |
| L5150BNTR PACKAGING INFO |
| L5150BNTR ECAD MODELS |
| L5150BNTR FUNCTONAL BLOCK DIAGRAM |
|
| COUNTRY OF ORIGIN |
| China |
|
| PARAMETRIC INFO |
| Type |
LDO |
| Number of Outputs |
1 |
| Maximum Output Current (A) |
0.15 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Output Type |
Fixed |
| Output Voltage Range (V) |
1.8 to 10 |
| Junction to Ambient |
79K/W |
| Junction to Case |
20K/W |
| Polarity |
Positive |
| Special Features |
Current Limit|Short Circuit Protection|Thermal Shutdown Protection |
| Load Regulation |
40mV |
| Line Regulation |
40mV |
| Maximum Quiescent Current (mA) |
0.05 |
| Maximum Dropout Voltage @ Current (V) |
0.5@150mA |
| Maximum Input Voltage (V) |
40 |
| Output Voltage (V) |
5 |
| Typical Quiescent Current (mA) |
0.05 |
| Accuracy (%) |
±2 |
|
| PACKAGE INFO |
| Supplier Package |
SOT-223 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
4 |
| Lead Shape |
Gull-wing |
| PCB |
3 |
| Tab |
Tab |
| Pin Pitch (mm) |
2.3 |
| Package Length (mm) |
6.5 |
| Package Width (mm) |
3.5 |
| Package Height (mm) |
1.8(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1.9(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
TO-261AA |
| Package Outline |
Link to Datasheet |
|
| MANUFACTURING INFO |
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Number of Reflow Cycle |
3 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
|

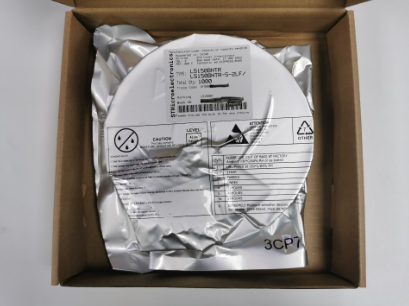

| PACKAGING INFO |
| Packaging Suffix |
TR |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
| Packaging Document |
Link to Datasheet |
|

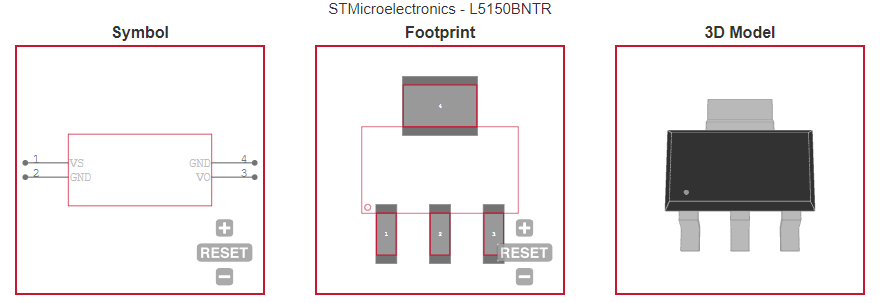

| ECAD MODELS |
 |
|

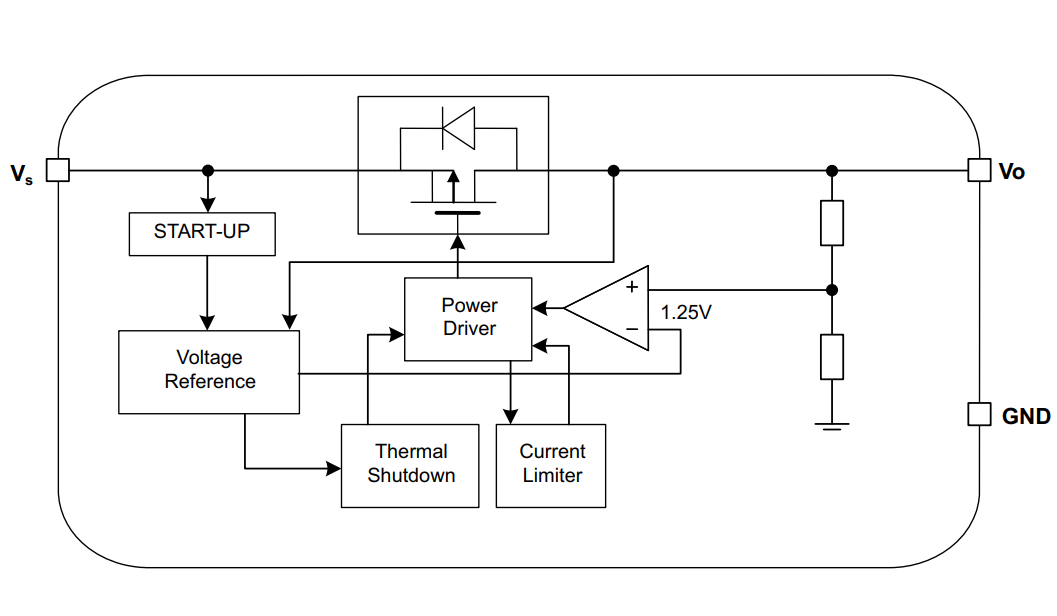

| FUNCTONAL BLOCK DIAGRAM |
|
|
