COUNTRY OF ORIGIN
|
United States of America
|
|
PARAMETRIC INFO
|
| Type |
Power |
| Gender |
PL |
| Number of Contacts |
3 |
| Termination Method |
Solder |
| Number of Ports |
1 |
| Maximum Current Rating (A) |
5 |
| Maximum Voltage Rating |
12VDC |
| Housing Material |
Plastic |
| Contact Material |
Copper Alloy |
| Insulation Resistance (MOhm) |
1000 |
| Maximum Contact Resistance (mOhm) |
100 |
| Mating Cycle (Cycles) |
10000 |
|
|
PACKAGE INFO
|
| Terminal Pitch (mm) |
3.3 |
| Body Orientation |
Right Angle |
| Mounting |
Through Hole |
| Number of Terminals |
3 |
| Product Length (mm) |
N/A |
| Product Depth (mm) |
N/A |
| Product Height (mm) |
N/A |
| Product Diameter (mm) |
10.92 |
| Product Weight (g) |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
N/A |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|

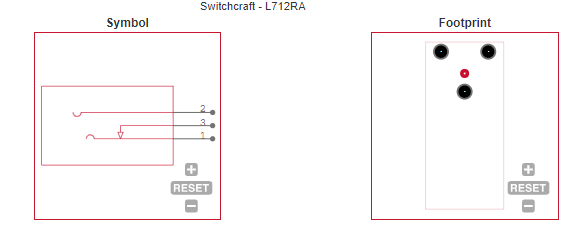

ECAD MODELS
|
|
|
