• Output current up to 1.5 A
|
• Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18; 24 V
|
• Thermal overload protection
|
• Short circuit protection
|
• Output transition SOA protection
|
• 2 % output voltage tolerance (A version)
|
• Guaranteed in extended temperature range (A version)
|
|
| CATALOG |
| L7805CV COUNTRY OF ORIGIN |
L7805CV PARAMETRIC INFO
|
L7805CV PACKAGE INFO
|
L7805CV MANUFACTURING INFO
|
L7805CV PACKAGING INFO
|
L7805CV ECAD MODELS
|
L7805CV FUNCTIONAL BLOCK DIAGRAM
|
|
COUNTRY OF ORIGIN
|
| USA |
China
|
Morocco
|
|
PARAMETRIC INFO
|
| Type |
Standard |
| Number of Outputs |
1 |
| Maximum Output Current (A) |
1.5 |
| Minimum Operating Temperature (°C) |
0 |
| Maximum Operating Temperature (°C) |
125 |
| Output Type |
Fixed |
| Output Voltage Range (V) |
1.8 to 10 |
| Junction to Ambient |
50°C/W |
| Junction to Case |
5°C/W |
| Polarity |
Positive |
| Special Features |
Current Limit|Safe Area Protection|Short Circuit Protection|Thermal Shutdown Protection |
| Load Regulation |
100mV |
| Line Regulation |
100mV |
| Maximum Quiescent Current (mA) |
8 |
| Maximum Input Voltage (V) |
35 |
| Output Voltage (V) |
5 |
| Typical Dropout Voltage @ Current (V) |
2@1A |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Typical PSRR (dB) |
68 |
| Typical Output Noise Voltage (uVrms) |
10 |
|
|

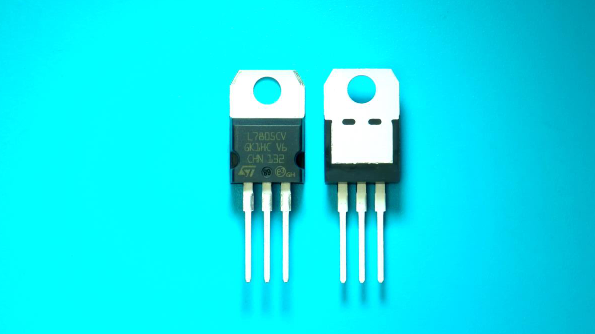

PACKAGE INFO
|
| Supplier Package |
TO-220AB |
| Basic Package Type |
Through Hole |
| Pin Count |
3 |
| Lead Shape |
Through Hole |
| PCB |
3 |
| Tab |
Tab |
| Pin Pitch (mm) |
2.7(Max) |
| Package Length (mm) |
10.4(Max) |
| Package Width (mm) |
4.6(Max) |
| Package Height (mm) |
9.15(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
10.4(Max) |
| Package Overall Width (mm) |
4.6(Max) |
| Package Overall Height (mm) |
19.68(Max) |
| Seated Plane Height (mm) |
19.68(Max) |
| Mounting |
Through Hole |
| Package Weight (g) |
1.9 |
| Package Material |
Plastic |
| Package Description |
Transistor Outline Package |
| Package Family Name |
TO |
| Jedec |
TO-220AB |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Number of Reflow Cycle |
N/R |
| Standard |
N/R |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
| Number of Wave Cycles |
2 |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Quantity Of Packaging |
1000 |
| Packaging Document |
Link to Datasheet |
|
|

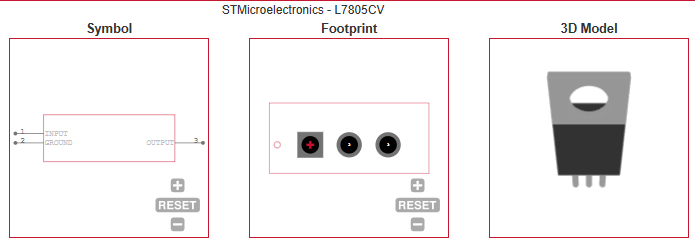

ECAD MODELS
|
|
|

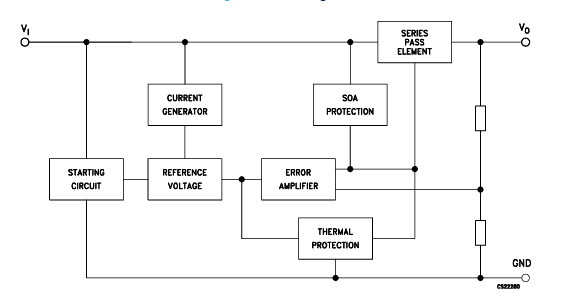

FUNCTIONAL BLOCK DIAGRAM
|
|
| |
|
|
