• Quad low-side switch
|
• 2 x 5 A designed as conventional switch
|
• 2 x 2.5 A designed as switched currentregulato
|
• Low ON-resistance 4 x 0.2 (typ.)
|
• PowerSO-36 - package with integrated cooling area
|
• Integrated free-wheeling and clamping Zdiodes
|
• Output slope control
|
|
| CATALOG |

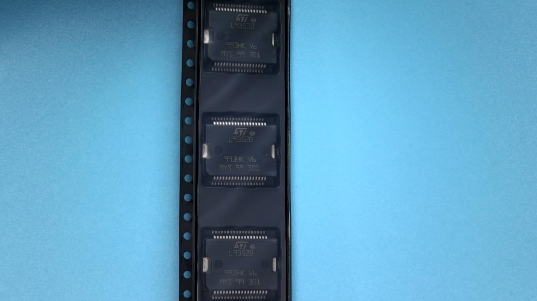

L9352B-TR-LF COUNTRY OF ORIGIN
|
L9352B-TR-LF PARAMETRIC INFO
|
L9352B-TR-LF PACKAGE INFO
|
L9352B-TR-LF MANUFACTURING INFO
|
L9352B-TR-LF PACKAGING INFO
|

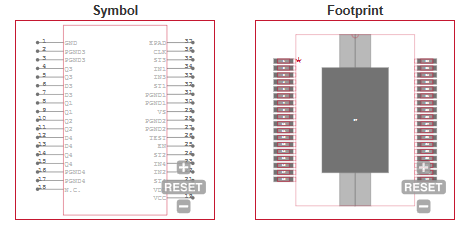

L9352B-TR-LF ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
|
PARAMETRIC INFO
|
| Type |
Low Side |
| Number of Outputs |
4 |
| Maximum Input Voltage (V) |
6 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Minimum Input Voltage (V) |
-1.5 |
| Switch On Resistance (Ohm) |
0.2 |
| Interface Type |
Parallel |
| Supply Current (mA) |
5(Max) |
| Output Voltage Range (V) |
-0.3 to 40 |
| Operating Supply Voltage Range (V) |
4.8 to 18 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
PowerSO |
| Pin Count |
36 |
| PCB |
36 |
| Tab |
N/R |
| Package Length (mm) |
16(Max) |
| Package Width (mm) |
11.1(Max) |
| Package Height (mm) |
3.3(Max) |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Family Name |
SO |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
245 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
IPC-1752 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ag |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
|
|
| PACKAGING INFO |
| Packaging Suffix |
TR |
| Packaging |
Tape and Reel |
| Packaging Document |
Link to Datasheet |
|
|
| ECAD MODELS |
 |
| |
