| ■ Configurable up to 6 high side drivers |
| ■ RDSON = max.1.5 @ Tj
= 25 °C |
| ■ Current limit of each output at min. 0.8 A |
| ■ Supply voltage 4.75 V to 5.25 V |
| ■ Output voltage clamping min. 35 V (low side
mode) |
| ■ Output voltage clamping -30 V (high side
mode) |
| ■ SPI interface for data communication |
| ■ Additional PWM inputs for 2 outputs |
| ■ Thermal shutdown for all outputs |
| ■ Open load detection in off mode |
| ■ Reverse battery protection for outputs (amb) |
| ■ Ground disconnection for high side configured
outputs |
|
| CATALOG |
| L9848TR COUNTRY OF ORIGIN |
| L9848TR PARAMETRIC INFO |
| L9848TR PACKAGE INFO |
| L9848TR MANUFACTURING INFO |
| L9848TR PACKAGING INFO |
| L9848TR ECAD MODELS |
| L9848TR FUNCTIONAL BLOCK DIAGRAM |
|
| COUNTRY OF ORIGIN |
| Malaysia |
|
| PARAMETRIC INFO |
| Number of Outputs |
8 |
| Number of Inputs |
1 |
| Minimum Input Voltage (V) |
0.8 |
| Maximum Output Current (A) |
1.8 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Switch On Resistance (mOhm) |
1000 |
| Supplier Temperature Grade |
Automotive |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
|
|
| PACKAGE INFO |
| Supplier Package |
SO |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
28 |
| Lead Shape |
Gull-wing |
| PCB |
28 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
18.1(Max) |
| Package Width (mm) |
7.6(Max) |
| Package Height (mm) |
2.35(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
2.65(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Small Outline IC |
| Package Family Name |
SO |
| Jedec |
N/A |
|
|
| MANUFACTURING INFO |
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
250 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
|
|
| PACKAGING INFO |
| Packaging Suffix |
TR |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
| Packaging Document |
Link to Datasheet |
|
|
| ECAD MODELS |
 |
|

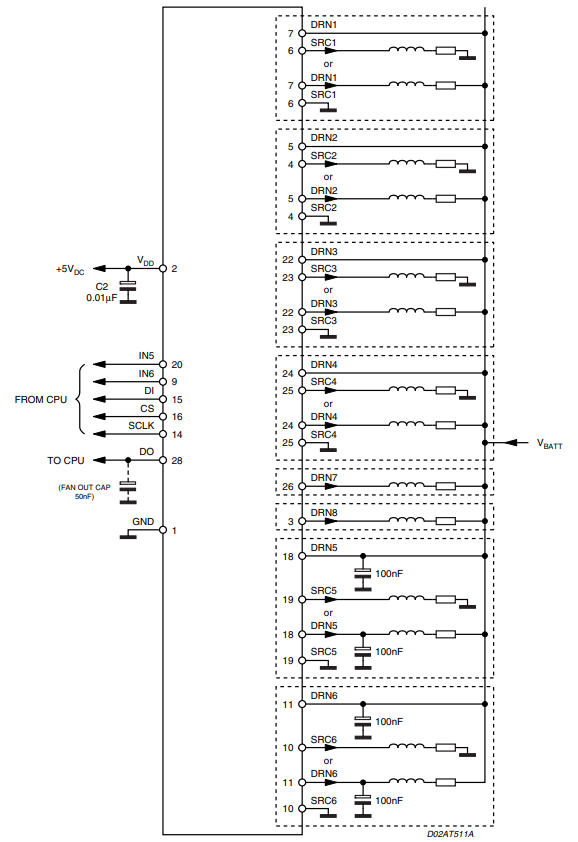

| FUNCTIONAL BLOCK DIAGRAM |
 |
| |
|
