• AEC-Q100 qualified
|
• Flexible driving strategy via configurable pins PWM/DIR (IN1/IN2)
|
• RDSon < 400 mΩ (full path at Tj=150° C)
|
• Operating battery supply voltage from 4.5 V up to 28 V
|
• Operating VDD5 supply voltage from 4.5 V to 5.5 V
|
• Input switching frequency up to 20 kHz
|
|
| CATALOG |
L9960TR COUNTRY OF ORIGIN
|
L9960TR PARAMETRIC INFO
|
L9960TR PACKAGE INFO
|
L9960TR MANUFACTURING INFO
|
L9960TR PACKAGING INFO
|
L9960TR ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
|
PARAMETRIC INFO
|
| Type |
Motor Driver |
| Output Voltage (V) |
-1 to 40 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
170 |
| Supplier Temperature Grade |
Automotive |
| Minimum Operating Supply Voltage (V) |
4.5 |
| Operating Supply Voltage (V) |
4.5 to 28 |
| Maximum Operating Supply Voltage (V) |
28 |
| Process Technology |
MOSFET |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
| Output Configuration |
H-Bridge |
| Control Interface |
PWM |
|
|
PACKAGE INFO
|
| Supplier Package |
PowerSSO EP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
36 |
| Lead Shape |
Gull-wing |
| PCB |
36 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
10.3 |
| Package Width (mm) |
7.5 |
| Package Height (mm) |
2.35(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
2.45(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Power Shrink Small Outline Package, Exposed Pad |
| Package Family Name |
SO |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Number of Reflow Cycle |
3 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
|
|

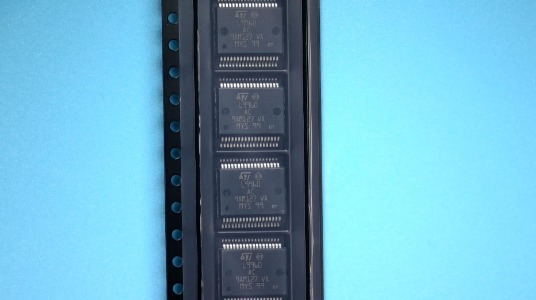

PACKAGING INFO
|
| Packaging Suffix |
TR |
| Packaging |
Tape and Reel |
| Packaging Document |
Link to Datasheet |
|
|

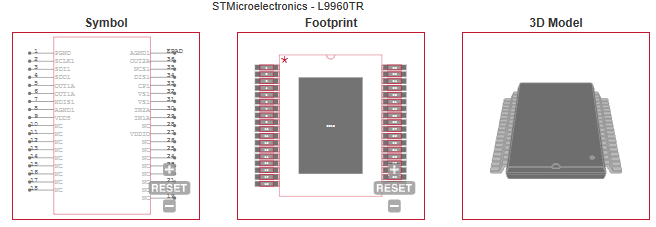

ECAD MODELS
|
|
|
