| L9997ND013TR COUNTRY OF ORIGIN |
L9997ND013TR PARAMETRIC INFO
|
L9997ND013TR PACKAGE INFO
|
L9997ND013TR MANUFACTURING INFO
|
L9997ND013TR PACKAGING INFO
|
L9997ND013TR ECAD MODELS
|
L9997ND013TR BLOCK DIAGRAM
|
|
COUNTRY OF ORIGIN
|
| Malaysia |
|
PARAMETRIC INFO
|
| Type |
Motor Driver |
| Maximum Operating Current (mA) |
6 |
| Minimum Operating Supply Voltage (V) |
-0.3 |
| Operating Supply Voltage (V) |
7 to 16.5 |
| Maximum Operating Supply Voltage (V) |
26 |
| Output Configuration |
Dual Half Bridge |
| Motor Type |
DC Motor |
|
|
PACKAGE INFO
|
| Supplier Package |
SO |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
20 |
| Lead Shape |
Gull-wing |
| PCB |
20 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
13(Max) |
| Package Width (mm) |
7.6(Max) |
| Package Height (mm) |
2.35(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
13(Max) |
| Package Overall Width (mm) |
10.65(Max) |
| Package Overall Height (mm) |
2.65(Max) |
| Seated Plane Height (mm) |
2.65(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline IC |
| Package Family Name |
SO |
| Jedec |
MS-013AC |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Number of Reflow Cycle |
3 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
|
|
PACKAGING INFO
|
| Packaging Suffix |
013TR |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
| Packaging Document |
Link to Datasheet |
|
|

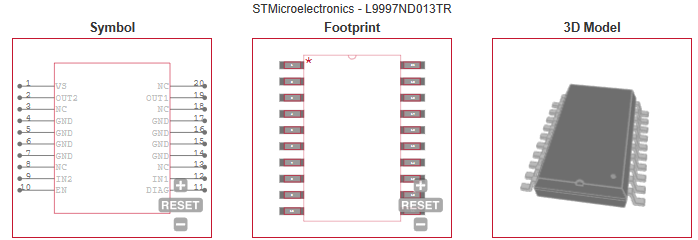

ECAD MODELS
|
|
|
BLOCK DIAGRAM
|
|
| |
