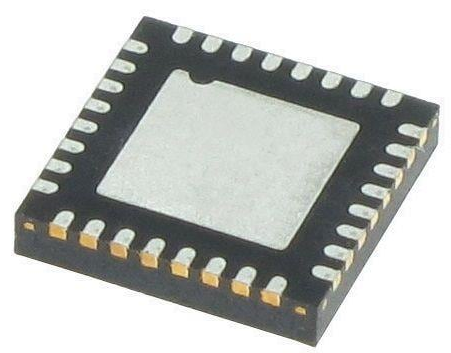

LAN8710A-EZC-ABC Microchip Technology IC TXRX ETHERNET 32QFN

2025/06/11 92

CATALOG

Thailand

Taiwan (Province of China)

Type	Fast Ethernet Transceiver
Maximum Data Rate	100Mbps
Number of Channels per Chip	1
PHY Line Side Interface	No
JTAG Support	No
Standard Supported	10BASE-T\|100BASE-TX\|IEEE 802.3\|IEEE 802.3u
Typical Data Rate (Mbps)	10/100
Integrated CDR	No
Number of Transceivers	1
Overhead Octet Support	No
Ethernet Interface Type	MII/RMII
Ethernet Speed	10Mbps/100Mbps
Minimum Operating Temperature (°C)	0
Maximum Operating Temperature (°C)	85
Supplier Temperature Grade	Extended Commercial
Process Technology	CMOS
Maximum Storage Temperature (°C)	150
Minimum Storage Temperature (°C)	-55
Power Supply Type	Analog\|Digital
Typical Operating Supply Voltage (V)	2.5\|3.3
Minimum Operating Supply Voltage (V)	1.14\|2.25\|3
Maximum Operating Supply Voltage (V)	1.26\|3.6
Operating Supply Voltage (V)	2.5\|3.3

Supplier Package	VQFN EP
Basic Package Type	Non-Lead-Frame SMT
Pin Count	32
Lead Shape	No Lead
PCB	32
Tab	N/R
Pin Pitch (mm)	0.5
Package Length (mm)	5
Package Width (mm)	5
Package Height (mm)	0.95(Max)
Package Diameter (mm)	N/R
Package Overall Length (mm)	5
Package Overall Width (mm)	5
Package Overall Height (mm)	1(Max)
Seated Plane Height (mm)	1(Max)
Mounting	Surface Mount
Package Weight (g)	N/A
Package Material	Plastic
Package Description	Very Thin Quad Flat No Lead Package, Exposed Pad
Package Family Name	QFN
Jedec	N/A
Package Outline	Link to Datasheet
Maximum PACKAGE_DIMENSION_H	0.95
Minimum PACKAGE_DIMENSION_H	0.7
Maximum PACKAGE_DIMENSION_L	5.15
Minimum PACKAGE_DIMENSION_L	4.85
Maximum PACKAGE_DIMENSION_W	5.15
Minimum PACKAGE_DIMENSION_W	4.85
Maximum Diameter	N/R
Minimum Diameter	N/R
Maximum Seated_Plane_Height	1
Minimum Seated_Plane_Height	0.7
