• Ultralow power consumption: 50 nA in power-down mode, below 1 µA in active low-power mode
|
• 0.8 °C (typ. accuracy) embedded temperature sensor
|
• Multiple operating modes with multiple bandwidths
|
• Android stationary detection, motion detection
|
• Supply voltage, 1.62 V to 3.6 V
|
• Independent IO supply
|
• ±2g/±4g/±8g/±16g full scale
|
• High-speed I²C/SPI digital output interface
|
• Single data conversion on demand
|
• 16-bit accelerometer data output
|
• 12-bit temperature data output
|
• Very low noise: down to 1.3 mg RMS in low-power mode
|
• Self-test
|
• 32-level FIFO
|
• 10000 g high shock survivability
|
• ECOPACK and RoHS compliant
|
|
| CATALOG |
LIS2DTW12TR COUNTRY OF ORIGIN
|
LIS2DTW12TR PARAMETRIC INFO
|
LIS2DTW12TR PACKAGE INFO
|
LIS2DTW12TR MANUFACTURING INFO
|
LIS2DTW12TR PACKAGING INFO
|
LIS2DTW12TR ECAD MODELS
|
LIS2DTW12TR APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Philippines
|
|
PARAMETRIC INFO
|
| Acceleration (g) |
±2/±4/±8/±16 |
| Axis Type |
Triple |
| Minimum Operating Supply Voltage (V) |
1.62 |
| Typical Operating Supply Voltage (V) |
1.8 |
| Maximum Operating Supply Voltage (V) |
3.6 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Maximum Acceleration (g) |
10000 |
| Minimum Storage Temperature (°C) |
-40 |
| Maximum Storage Temperature (°C) |
125 |
| Supplier Temperature Grade |
Extended |
| Output Type |
Digital |
| Operating Supply Voltage (V) |
1.62 to 3.6 |
| Acceleration Range (g) |
±1.5 to ±3|±3 to ±4|±4 to ±40 |
|
|
PACKAGE INFO
|
| Supplier Package |
LGA |
| Pin Count |
12 |
| PCB |
12 |
| Tab |
N/R |
| Package Length (mm) |
2 |
| Package Width (mm) |
2 |
| Package Height (mm) |
0.7(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
0.7(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Family Name |
LGA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| Shelf Life Period |
2 Years |
|
|

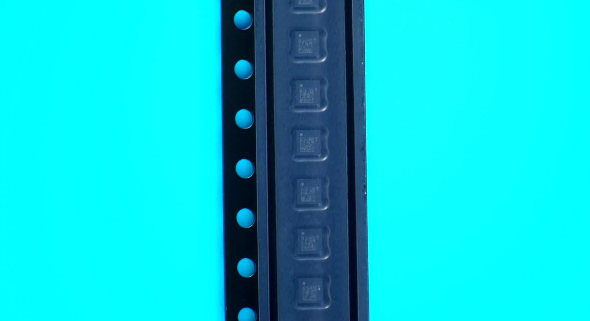

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
|
|

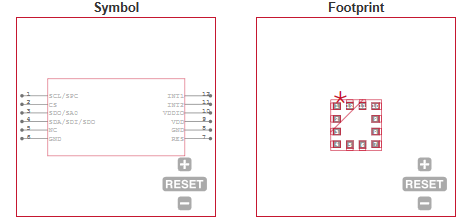

| ECAD MODELS |
|
|
| APPLICATIONS |
• Fragile shipment tracking
|
• Motion and temperature monitoring in battery-powered devices
|
• Gesture recognition and gaming
|
• Motion-activated functions and user interfaces
|
• Display orientation
|
• Tap/double-tap recognition
|
• Free-fall detection
|
• Smart power saving for handheld devices
|
• Hearing aids
|
• Portable healthcare devices
|
• Portable healthcare devices
|
• Motion-enabled metering devices
|
|
