• 2.4 V to 3.6 V single supply operation
|
• ±2 g / ±6 g user selectable full-scale
|
• Low power consumption
|
| • Output voltage, offset and sensitivity are ratiometric to the supply voltage |
| • Factory trimmed device sensitivity and offset |
| • Embedded self test |
| • RoHS/ECOPACK® compliant |
| • High shock survivability ( 10000 g ) |
|
| CATALOG |
| LIS344ALHTR COUNTRY OF ORIGIN |
LIS344ALHTR PARAMETRIC INFO
|
LIS344ALHTR PACKAGE INFO
|
LIS344ALHTR MANUFACTURING INFO
|
LIS344ALHTR PACKAGING INFO
|
LIS344ALHTR EACD MODELS
|
| LIS344ALHTR APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Malta |
|
PARAMETRIC INFO
|
| Acceleration (g) |
±2/±6 |
| Axis Type |
Triple |
| Minimum Operating Supply Voltage (V) |
2.4 |
| Typical Operating Supply Voltage (V) |
3.3 |
| Maximum Operating Supply Voltage (V) |
3.6 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Minimum Storage Temperature (°C) |
-40 |
| Maximum Storage Temperature (°C) |
125 |
| Output Type |
Analog |
| Resonant Frequency (kHz) |
1.8(Min) |
| Operating Supply Voltage (V) |
2.4 to 3.6 |
| Acceleration Range (g) |
±1.5 to ±3|±3 to ±4|±4 to ±40 |
|
|
PACKAGE INFO
|
| Supplier Package |
LGA |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
16 |
| Lead Shape |
No Lead |
| PCB |
16 |
| Tab |
N/R |
| Package Length (mm) |
4 |
| Package Width (mm) |
4 |
| Package Height (mm) |
1.5 |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Description |
Land Grid Array Package |
| Package Family Name |
LGA |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Number of Reflow Cycle |
3 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
| Number of Wave Cycles |
N/R |
|
|

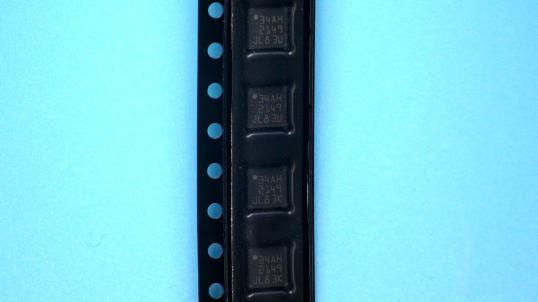

PACKAGING INFO
|
| Packaging Suffix |
TR |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
| Packaging Document |
Link to Datasheet |
|
|
ECAD MODELS
|
|
