• Available in Fixed 1.8-V, 2.5-V, 3.3-V, 5-V
|
• Available in Adjustable Version
|
• Current Limiting and Thermal Protection
|
| • 2% Output Accuracy |
| • Output Current 1.5 A |
| • Line Regulation 0.015% (Typical) |
| • Load Regulation 0.1% (Typical) |
| • Maximum Input Voltage up to 29V |
| • Minimum Adjustable Output Voltage Down to 1.25V |
| • Stable with Ceramic Output Capacitor with ESR |
| • Temperature Range : -40°C to 125°C |
|
| CATALOG |
| LM1086CS-3.3/NOPB COUNTRY OF ORIGIN |
LM1086CS-3.3/NOPB PARAMETRIC INFO
|
LM1086CS-3.3/NOPB PACKAGE INFO
|
LM1086CS-3.3/NOPB MANUFACTURING INFO
|
LM1086CS-3.3/NOPB PACKAGING INFO
|
LM1086CS-3.3/NOPB EACD MODELS
|
| LM1086CS-3.3/NOPB APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| China |
| Malaysia |
|
PARAMETRIC INFO
|
| type |
LDO |
| Number of Outputs |
1 |
| Maximum Output Current (A) |
1.5 |
| Minimum Operating Temperature (°C) |
0 |
| Maximum Operating Temperature (°C) |
125 |
| Output Type |
Fixed |
| Output Voltage Range (V) |
1.8 to 10 |
| Junction to ambient |
40.8°C/W |
| Junction to Case |
42.3°C/W |
| Polarity |
Positive |
| Special Features |
Current Limit|Thermal Shutdown Protection |
| Load Regulation |
15mV |
| Line Regulation |
10mV |
| Maximum Quiescent Current (mA) |
10 |
| Maximum Dropout Voltage @ Current (V) |
1.5@1.5A |
| Minimum Input Voltage (V) |
2.6 |
| Maximum Input Voltage (V) |
27 |
| Output Voltage (V) |
3.3 |
| Typical Quiescent Current (mA) |
5 |
| Typical Dropout Voltage @ Current (V) |
1.3@1.5A |
| Reference Voltage (V) |
1.262 |
| Accuracy (%) |
±2 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Typical PSRR (dB) |
72 |
| Typical Output Capacitance (uF) |
10(Min) |
| Typical Output Noise Voltage (uVrms) |
38 |
| Output Capacitor Type |
Ceramic |
|
|

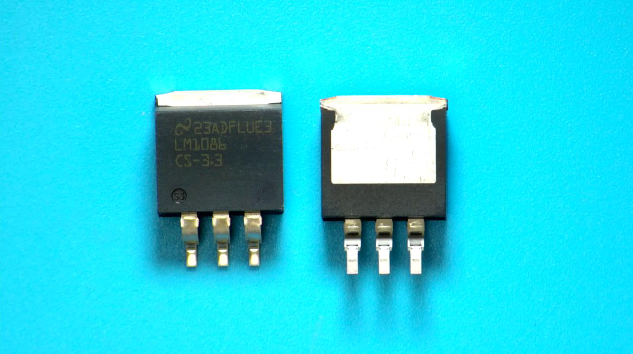

PACKAGE INFO
|
| Supplier packaging |
DDPAK |
| Basic package type |
Lead-Frame SMT |
| Number of pins |
4 |
| Pin shape |
Gull-wing |
| PCB |
3 |
| ears |
ears |
| Pin spacing (mm) |
2.54 |
| Package length (mm) |
10.67(Max) |
| Package width (mm) |
9.65(Max) |
| Package height (mm) |
4.83(Max) |
| Package diameter (mm) |
N/R |
| Package Overall Length (mm) |
10.67(Max) |
| Package Overall Width (mm) |
15.88(Max) |
| Package Overall Height (mm) |
5.08(Max) |
| Mounting surface height (mm) |
5.08(Max) |
| Install |
Surface Mount |
| Package weight (g) |
not applicable |
| Packaging materials |
Plastic |
| package instruction |
Double Deca Watt Package |
| Package series name |
TO-263 |
| JEDEC |
TO-263AA |
| Package outline |
Link to datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum reflow temperature (°C) |
245 |
| Reflow soldering time (seconds) |
30 |
| Number of reflow cycles |
3 |
| standard |
J-STD-020D |
| Reflow temperature source |
Link to datasheet |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Lead Finish(Plating) |
Matt Sn |
| Plating materials |
not applicable |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
| Package |
Tube |
| Packing quantity |
45 |
| packaging type file |
Link to datasheet |
|
|

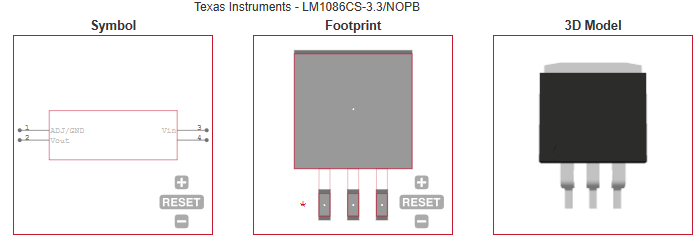

ECAD MODELS
|
|
|
| APPLICATIONS |
| • High-Efficiency Linear Regulators |
| • Battery Chargers |
| • Post Regulation for Switching Supplies |
| • Constant Current Regulators |
| • Microprocessor Supplies |
| • Audio Amplifiers Supplies |
| • Fire Alarm Control |
