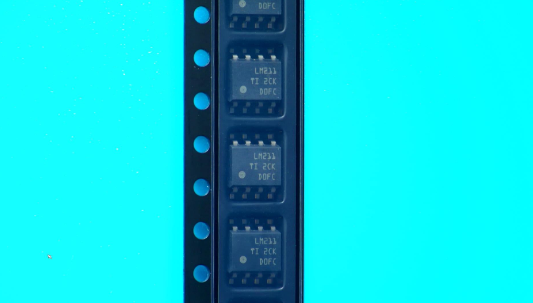

LM211DR Texas Instruments IC DIFF COMPARATOR W/STRB 8-SOIC

label:

2023/10/12 328

• Fast Response Time: 165 ns

• Strobe Capability

• Maximum Input Bias Current: 300 nA

• Maximum Input Offset Current: 70 nA

• Can Operate From Single 5-V Supply

• Available in Q-Temp Automotive – High-Reliability Automotive Applications – Configuration Control and Print Support – Qualification to Automotive Standards

• On Products Compliant to MIL-PRF-38535, All Parameters Are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters.

CATALOG

LM211DR COUNTRY OF ORIGIN

LM211DR PARAMETRIC INFO

LM211DR PACKAGE INFO

LM211DR MANUFACTURING INFO

LM211DR PACKAGING INFO

LM211DR ECAD MODELS

LM211DR APPLICATIONS

COUNTRY OF ORIGIN

China

Costa Rica

Malaysia

Mexico

United States of America

Viet Nam

PARAMETRIC INFO

Rail to Rail	No
Manufacturer Type	Voltage Comparator
Process Technology	Bipolar
Number of Channels per Chip	1
Output Type	Open Collector
Maximum Input Offset Voltage (mV)	3@±15V
Maximum Input Bias Current (uA)	0.1@±15V
Maximum Input Voltage Range (V)	±15
Typical Voltage Gain (dB)	106.02
Typical Voltage Gain Range (dB)	90 to 110
Strobe Capability	Yes
Typical Response Time (us)	0.165
Typical Response Time Range (us)	0.05 to 0.5
Maximum Propagation Delay Time (ns)	115(Typ)
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Minimum Storage Temperature (°C)	-65
Maximum Storage Temperature (°C)	150
Power Supply Type	Single\|Dual
Integrated Voltage Reference	No
Maximum Test Temperature (°C)	85
Minimum Test Temperature (°C)	-40
Maximum Operating Supply Voltage (V)	±15\|30
Integrated OP Amp	No
Minimum Single Supply Voltage (V)	3.5
Typical Single Supply Voltage (V)	5\|9\|12\|15\|18\|24\|28
Maximum Single Supply Voltage (V)	30
Minimum Dual Supply Voltage (V)	±1.75
Typical Dual Supply Voltage (V)	±3\|±5\|±9\|±12
Maximum Dual Supply Voltage (V)	±15
Maximum Quiescent Current (mA)	6@15V/-5@-15V

PACKAGE INFO

Supplier Package	SOIC
Basic Package Type	Lead-Frame SMT
Pin Count	8
Lead Shape	Gull-wing
PCB	8
Tab	N/R
Pin Pitch (mm)	1.27
Package Length (mm)	5(Max)
Package Width (mm)	3.98(Max)
Package Height (mm)	1.5(Max)
Package Diameter (mm)	N/R
Package Overall Length (mm)	5(Max)
Package Overall Width (mm)	6.19(Max)
Package Overall Height (mm)	1.75(Max)
Seated Plane Height (mm)	1.75(Max)
Mounting	Surface Mount
Package Weight (g)	N/A
Package Material	Plastic
Package Description	Small Outline IC
Package Family Name	SO
Jedec	MS-012AA
Package Outline	Link to Datasheet

MANUFACTURING INFO

MSL	1
Maximum Reflow Temperature (°C)	260
Reflow Solder Time (Sec)	30
Number of Reflow Cycle	3
Standard	J-STD-020D
Reflow Temp. Source	Link to Datasheet
Maximum Wave Temperature (°C)	N/R
Wave Solder Time (Sec)	N/R
Lead Finish(Plating)	Au
Under Plating Material	Pd over Ni
Terminal Base Material	Cu Alloy
Number of Wave Cycles	N/R

PACKAGING INFO

Packaging Suffix	R
Packaging	Tape and Reel
Quantity Of Packaging	2500
Reel Diameter (in)	13
Reel Width (mm)	12.4
Tape Pitch (mm)	8
Tape Width (mm)	12
Component Orientation	Q1
Packaging Document	Link to Datasheet

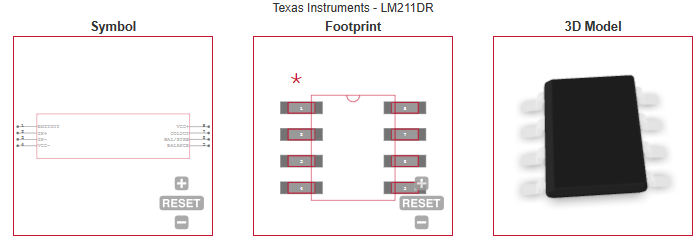

ECAD MODELS

APPLICATIONS

• Desktop PCs

• Body Control Modules

• White Goods

• Building Automation

• Oscillators

• Peak Detectors
