• LM25011-Q1 is an Automotive Grade Product that is AEC-Q100 Grade 1 Qualified (–40°C to +125°C Operating Junction Temperature)

• LM25011A Allows Low-Dropout Operation at High Switching Frequency

• Input Operating Voltage Range: 6 V to 42 V

• Absolute Maximum Input Rating: 45 V

• Integrated 2-A N-Channel Buck Switch

• Adjustable Current Limit Allows for Smaller Inductor

• Adjustable Output Voltage from 2.51 V

• Minimum Ripple Voltage at VOUT

• Power Good Output

• Switching Frequency Adjustable to 2 MHz

• COT Topology Features:
– Switching Frequency Remains Nearly Constant with Load Current and Input Voltage Variations
– Ultra-Fast Transient Response
– No Loop Compensation Required
– Stable Operation with Ceramic Output Capacitors
– Allows for Smaller Output Capacitor and Current Sense Resistor

• Adjustable Soft-Start Timing

• Thermal Shutdown

• Precision 2% Feedback Reference

• Package: 10-Pin, HVSSOP

• Create a Custom Design Using the LM25011 Family with the WEBENCH Power Designer

CATALOG

LM25011AMYE COUNTRY OF ORIGIN

LM25011AMYE PARAMETRIC INFO

LM25011AMYE PACKAGE INFO

LM25011AMYE MANUFACTURING INFO

LM25011AMYE PACKAGING INFO

LM25011AMYE ECAD MODELS

LM25011AMYE FUNCTONAL BLOCK DIAGRAM

LM25011AMYE APPLICATIONS

COUNTRY OF ORIGIN

Malaysia

PARAMETRIC INFO

Isolation	Non-Isolated
Type	Step Down
Number of Outputs	1
Minimum Input Voltage (V)	6
Maximum Input Voltage (V)	42
Output Voltage (V)	2.51 to 40
Maximum Output Current (A)	2
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	125
Switching Frequency (kHz)	50 to 2000
Switching Regulator	Yes
Operating Supply Voltage (V)	6 to 42
Output Type	Adjustable
Typical Quiescent Current (uA)	1200
Minimum Storage Temperature (°C)	-65
Maximum Storage Temperature (°C)	150

PACKAGE INFO

Supplier Package	HVSSOP EP
Basic Package Type	Lead-Frame SMT
Pin Count	10
Lead Shape	Gull-wing
PCB	10
Tab	N/R
Pin Pitch (mm)	0.5
Package Length (mm)	3.1(Max)
Package Width (mm)	3.1(Max)
Package Height (mm)	0.95(Max)
Package Diameter (mm)	N/R
Package Overall Length (mm)	3.1(Max)
Package Overall Width (mm)	5.05(Max)
Package Overall Height (mm)	1.1(Max)
Seated Plane Height (mm)	1.1(Max)
Mounting	Surface Mount
Package Weight (g)	N/A
Package Material	Plastic
Package Description	Heat Sinked Very Thin Shrink Small Outline Package, Exposed Pad
Package Family Name	SOP
Jedec	MO-187BA-T
Package Outline	Link to Datasheet

MANUFACTURING INFO

MSL	3
Maximum Reflow Temperature (°C)	260
Reflow Solder Time (Sec)	30
Number of Reflow Cycle	3
Standard	J-STD-020D
Reflow Temp. Source	Link to Datasheet
Maximum Wave Temperature (°C)	N/R
Wave Solder Time (Sec)	N/R
Lead Finish(Plating)	Matte Sn
Under Plating Material	N/A
Terminal Base Material	Cu Alloy

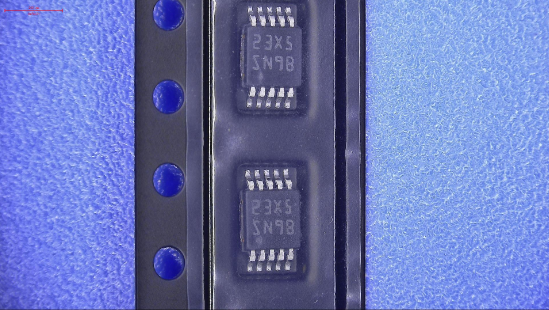

PACKAGING INFO

Packaging	Tape and Reel
Quantity Of Packaging	250
Packaging Document	Link to Datasheet

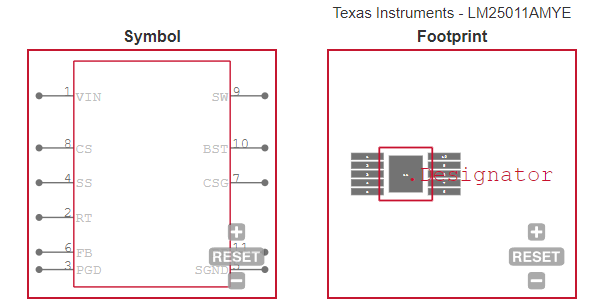

ECAD MODELS

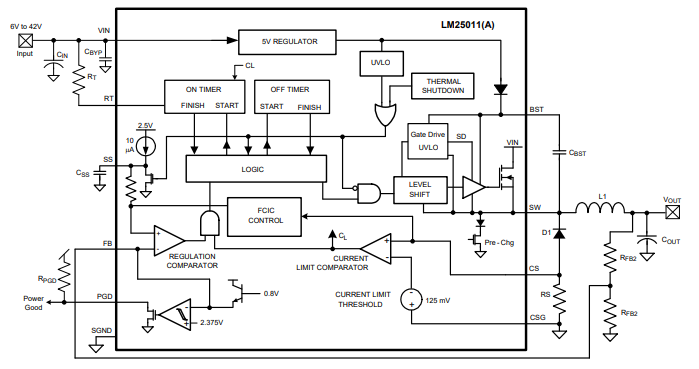

FUNCTONAL BLOCK DIAGRAM

APPLICATIONS

• Automotive Safety

• Infotainment

• Telecommunication

• Front Camera
