• Specified 1A Output Current
|
• Requires Only 4 External Components
|
• 52 kHz Fixed Frequency Internal Oscillator
|
• High Efficiency
|
• Uses Readily Available Standard Inductors
|
• P
+ Product Enhancement Tested
|
|
| CATALOG |
LM2575HVT-ADJ/NOPB COUNTRY OF ORIGIN
|
LM2575HVT-ADJ/NOPB PARAMETRIC INFO
|
LM2575HVT-ADJ/NOPB PACKAGE INFO
|
LM2575HVT-ADJ/NOPB MANUFACTURING INFO
|
LM2575HVT-ADJ/NOPB PACKAGING INFO
|
LM2575HVT-ADJ/NOPB ECAD MODELS
|
LM2575HVT-ADJ/NOPB APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
|
PARAMETRIC INFO
|
| Type |
Step Down |
| Number of Outputs |
1 |
| Minimum Input Voltage (V) |
4 |
| Maximum Input Voltage (V) |
60 |
| Output Voltage (V) |
1.23 to 57 |
| Maximum Output Current (A) |
1 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Switching Frequency (kHz) |
58 |
| Efficiency (%) |
77(Typ) |
| Switching Regulator |
Yes |
| Operating Supply Voltage (V) |
4 to 60 |
| Output Type |
Adjustable |
| Typical Quiescent Current (uA) |
10000 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
|
|

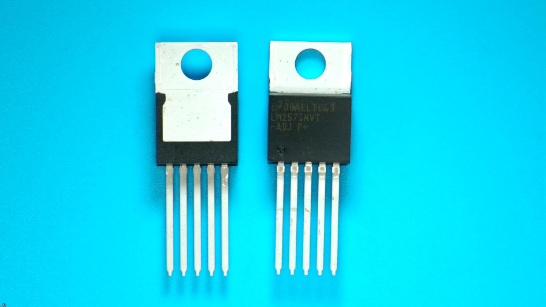

PACKAGE INFO
|
| Supplier Package |
TO-220 |
| Basic Package Type |
Through Hole |
| Pin Count |
5 |
| PCB |
5 |
| Tab |
Tab |
| Pin Pitch (mm) |
1.7 |
| Package Length (mm) |
10.67(Max) |
| Package Width (mm) |
4.83(Max) |
| Package Height (mm) |
9.25(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
16.51(Max) |
| Mounting |
Through Hole |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Transistor Outline Package |
| Package Family Name |
TO |
| Jedec |
TO-220AB |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/A |
| Wave Solder Time (Sec) |
N/A |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Quantity Of Packaging |
45 |
| Packaging Document |
Link to Datasheet |
|
|

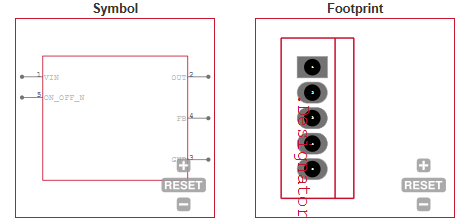

ECAD MODELS
|
|
|
APPLICATIONS
|
• Simple High-Efficiency Step-Down (Buck) Regulator
|
| • Efficient Pre-Regulator for Linear Regulators |
| • On-Card Switching Regulators |
• Positive to Negative Converter (Buck-Boost)
|
|
| |
