• 3.3-V, 5-V, 12-V, 15-V, and adjustable output versions
|
• Adjustable version output voltage range,1.23 V to 37 V (57 V for HV version) ±4% maximum over line and load conditions
|
• Specified 3-A output current
|
• Wide input voltage range: 40 V Up to 60 V for HV version
|
• Requires only four external components
|
|
| CATALOG |

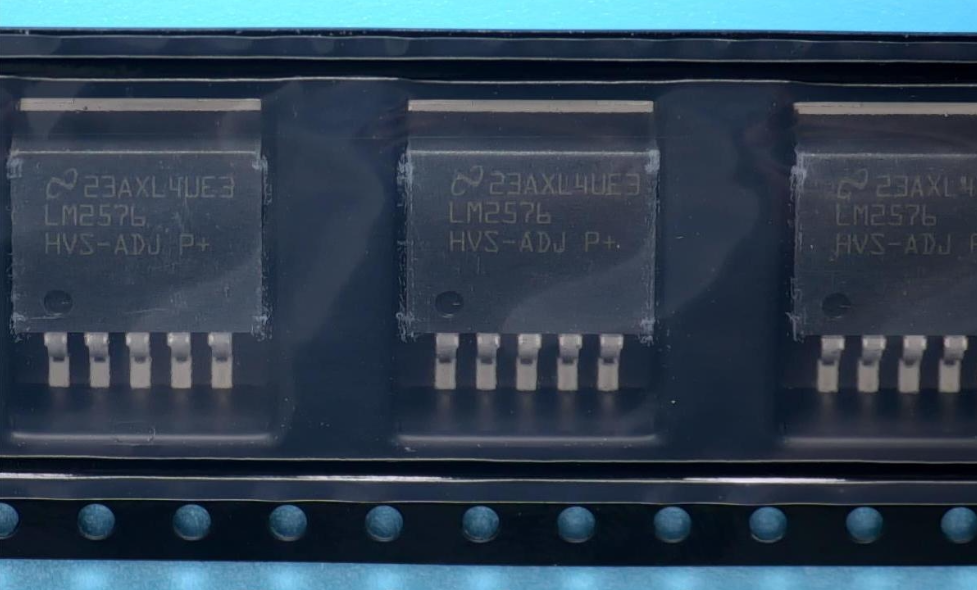

LM2576HVS-ADJ/NOPB COUNTRY OF ORIGIN
|
LM2576HVS-ADJ/NOPB PARAMETRIC INFO
|
LM2576HVS-ADJ/NOPB PACKAGE INFO
|
LM2576HVS-ADJ/NOPB MANUFACTURING INFO
|
LM2576HVS-ADJ/NOPB PACKAGING INFO
|
LM2576HVS-ADJ/NOPB ECAD MODELS
|
LM2576HVS-ADJ/NOPB APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
China
|
Malaysia
|
|
PARAMETRIC INFO
|
| Type |
Step Down |
| Number of Outputs |
1 |
| Minimum Input Voltage (V) |
4 |
| Maximum Input Voltage (V) |
60 |
| Output Voltage (V) |
1.23 to 57 |
| Maximum Output Current (A) |
3 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Switching Frequency (kHz) |
58 |
| Efficiency (%) |
77(Typ) |
| Switching Regulator |
Yes |
| Operating Supply Voltage (V) |
4 to 60 |
| Output Type |
Adjustable |
| Typical Quiescent Current (uA) |
5000 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
DDPAK |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
6 |
| Lead Shape |
Gull-wing |
| PCB |
5 |
| Tab |
Tab |
| Pin Pitch (mm) |
1.7 |
| Package Length (mm) |
10.67(Max) |
| Package Width (mm) |
9.65(Max) |
| Package Height (mm) |
4.83(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
5.13(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Double Deca Watt Package |
| Package Family Name |
TO-263 |
| Jedec |
TO-263BA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
245 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Quantity Of Packaging |
45 |
| Packaging Document |
Link to Datasheet |
|
|

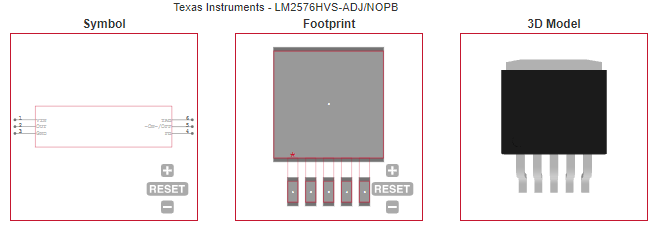

ECAD MODELS
|
|
|
| APPLICATIONS |
| • Motor drives |
| • Merchant network and server PSU |
| • Appliances |
| • Test and measurement equipment |
| |
