| • 3.3-V, 5-V, 12-V, and adjustable output versions
|
| • Adjustable version output voltage range: 1.2 V to
37 V (57-V for the HV version), ±4% maximum
over line and load conditions |
| • Available in 8-pin surface-mount SOIC and 8-pin
PDIP packages |
| • Ensured 0.5-A output current |
| • Input voltage range up to 60 V |
| • Requires only four external components |
| • 150-kHz fixed-frequency internal oscillator |
| • TTL shutdown capability |
| • Low power standby mode, IQ typically 85 μA |
| • High efficiency |
| • Uses readily-available standard inductors |
| • Thermal shutdown and current-limit protection |
| • Create a custom design using the LM2594HV with
the WEBENCH® Power Designer |
|
| CATALOG |
| LM2594MX-ADJ/NOPB COUNTRY OF ORIGIN |
| LM2594MX-ADJ/NOPB PARAMETRIC INFO |
| LM2594MX-ADJ/NOPB PACKAGE INFO |
| LM2594MX-ADJ/NOPB MANUFACTURING INFO |
| LM2594MX-ADJ/NOPB PACKAGING INFO |
| LM2594MX-ADJ/NOPB ECAD MODELS |

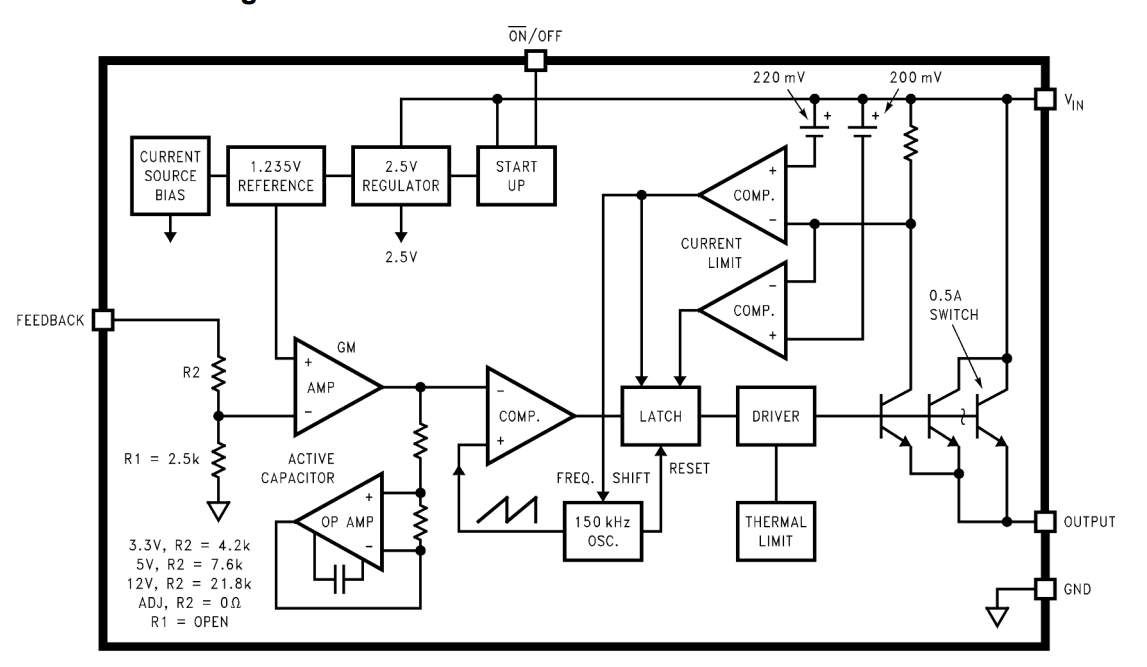

| LM2594MX-ADJ/NOPB FUNCTIONAL BLOCK DIAGRAM
|
| LM2594MX-ADJ/NOPB APPLICATIONS
|
|
| COUNTRY OF ORIGIN |
| Malaysia |
|
| PARAMETRIC INFO |
| Type |
Inverting|Step Down |
| Number of Outputs |
1 |
| Minimum Input Voltage (V) |
4.5 |
| Maximum Input Voltage (V) |
40 |
| Output Voltage (V) |
1.2 to 37 |
| Maximum Output Current (A) |
0.5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Switching Frequency (kHz) |
173 |
| Efficiency (%) |
80(Typ) |
| Switching Regulator |
Yes |
| Operating Supply Voltage (V) |
4.5 to 40 |
| Output Type |
Adjustable |
| Typical Quiescent Current (uA) |
5000 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Typical Switch Current (A) |
0.8 |
|
| |
| PACKAGE INFO |
| Supplier Package |
SOIC |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
5(Max) |
| Package Width (mm) |
3.98(Max) |
| Package Height (mm) |
1.5(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5(Max) |
| Package Overall Width (mm) |
6.19(Max) |
| Package Overall Height (mm) |
1.75(Max) |
| Seated Plane Height (mm) |
1.75(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline IC |
| Package Family Name |
SO |
| Jedec |
MS-012AA |
| Package Outline |
Link to Datasheet |
|
| |
| MANUFACTURING INFO |
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|

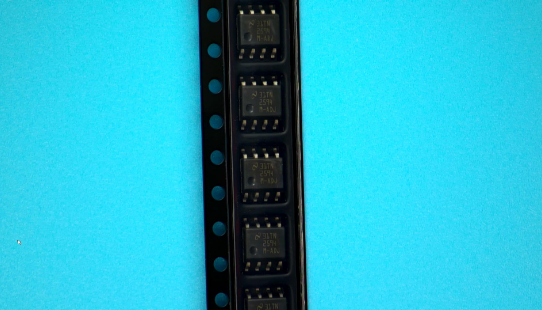

| |
| PACKAGING INFO |
| Packaging Suffix |
X |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
| Reel Diameter (in) |
13 |
| Reel Width (mm) |
12.4 |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
12 |
| Component Orientation |
Q1 |
| Packaging Document |
Link to Datasheet |
|

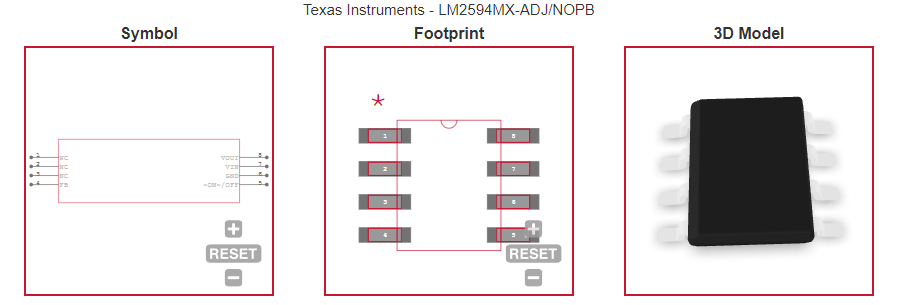

| |
| ECAD MODELS |
 |
| |
| FUNCTIONAL BLOCK DIAGRAM
|
 |
|
| APPLICATIONS
|
| • Simple high-efficiency step-down (buck) regulator |
| • Efficient preregulator for linear regulators |
| • On-card switching regulators |
| • Positive-to-negative convertor |
|
