• Efficiency up to 96%
|
• Available in 8-Pin SOIC, PDIP, and 16-Pin WSON Package
|
• Requires only 5 External Components
|
• 3.3-V, 5-V, 12-V, and Adjustable Output Versions
|
• Adjustable Version Output Voltage Range: 1.21 V to 37 V
|
• ±1.5% Maximum Output Voltage Tolerance Over Line and Load Conditions
|
|
| CATALOG |
LM2675LD-5.0/NOPB COUNTRY OF ORIGIN
|
LM2675LD-5.0/NOPB PARAMETRIC INFO
|
LM2675LD-5.0/NOPB PACKAGE INFO
|
LM2675LD-5.0/NOPB MANUFACTURING INFO
|
LM2675LD-5.0/NOPB PACKAGING INFO
|
LM2675LD-5.0/NOPB ECAD MODELS
|
LM2675LD-5.0/NOPB APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
China
|
Malaysia
|
Philippines
|
|
PARAMETRIC INFO
|
| Type |
Step Down |
| Number of Outputs |
1 |
| Minimum Input Voltage (V) |
8 |
| Maximum Input Voltage (V) |
40 |
| Output Voltage (V) |
5 |
| Maximum Output Current (A) |
1 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Switching Frequency (kHz) |
260(Typ) |
| Efficiency (%) |
90(Typ) |
| Switching Regulator |
Yes |
| Operating Supply Voltage (V) |
6.5 to 40 |
| Output Type |
Fixed |
| Typical Quiescent Current (uA) |
2500 |
|
|
PACKAGE INFO
|
| Supplier Package |
WSON EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
16 |
| Lead Shape |
No Lead |
| PCB |
16 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
5 |
| Package Width (mm) |
5 |
| Package Height (mm) |
0.8(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5 |
| Package Overall Width (mm) |
5 |
| Package Overall Height (mm) |
0.8(Max) |
| Seated Plane Height (mm) |
0.8(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Very Very Thin Small Outline No Lead Package, Exposed Pad |
| Package Family Name |
SON |
| Jedec |
N/A |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
| Packaging Document |
Link to Datasheet |
|
|

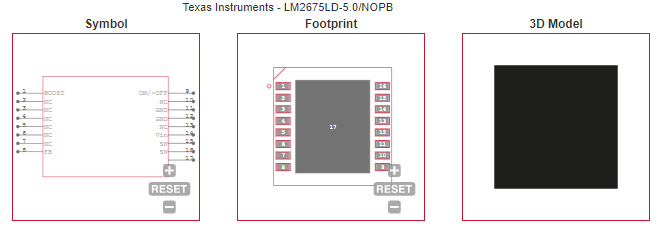

| ECAD MODELS |
 |
|
| APPLICATIONS |
| • Simple High Efficiency (>90%) Step-Down (Buck) Regulator |
| • Efficient Preregulator for Linear Regulators |
| • Positive-to-Negative Converter |
| |
