| • Efficiency up to 96% |
| • Available in 8-Pin SOIC, PDIP, and 16-Pin WSON
Package
|
| • Requires only 5 External Components |
| • 3.3-V, 5-V, 12-V, and Adjustable Output Versions |
| • Adjustable Version Output Voltage Range: 1.21 V
to 37 V |
| • ±1.5% Maximum Output Voltage Tolerance Over
Line and Load Conditions |
| • Ensured 1-A Output Load Current |
| • Wide Input Voltage Range: 8 V to 40 V |
| • 260-kHz Fixed Frequency Internal Oscillator |
| • TTL Shutdown Capability, Low-Power Standby
Mode |
| • Thermal Shutdown and Current Limit Protection |
|
| CATALOG |
| LM2675M-5.0/NOPB COUNTRY OF ORIGIN |
| LM2675M-5.0/NOPB PACKAGE INFO |
| LM2675M-5.0/NOPB MANUFACTURING INFO |
| LM2675M-5.0/NOPB PACKAGING INFO |
| LM2675M-5.0/NOPB ECAD MODELS |
| LM2675M-5.0/NOPB FUNCTIONAL BLOCK DIAGRAM |
| LM2675M-5.0/NOPB APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Philippines |
| Malaysia |
|

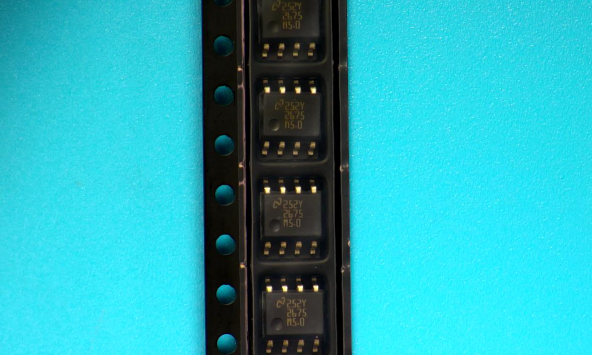

| PACKAGE INFO |
| Supplier Package |
SOIC |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
5(Max) |
| Package Width (mm) |
3.98(Max) |
| Package Height (mm) |
1.5(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5(Max) |
| Package Overall Width (mm) |
6.19(Max) |
| Package Overall Height (mm) |
1.75(Max) |
| Seated Plane Height (mm) |
1.75(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline IC |
| Package Family Name |
SO |
| Jedec |
MS-012AA |
| Package Outline |
Link to Datasheet |
|
| |
| MANUFACTURING INFO |
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn|Au |
| Under Plating Material |
N/A|Pd over Ni |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
| |
| PACKAGING INFO |
| Packaging |
Tube |
| Quantity Of Packaging |
95 |
| Packaging Document |
Link to Datasheet |
|
| |

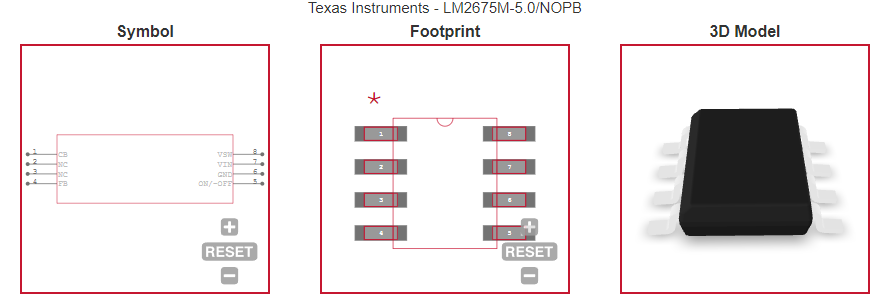

| ECAD MODELS |
|
|

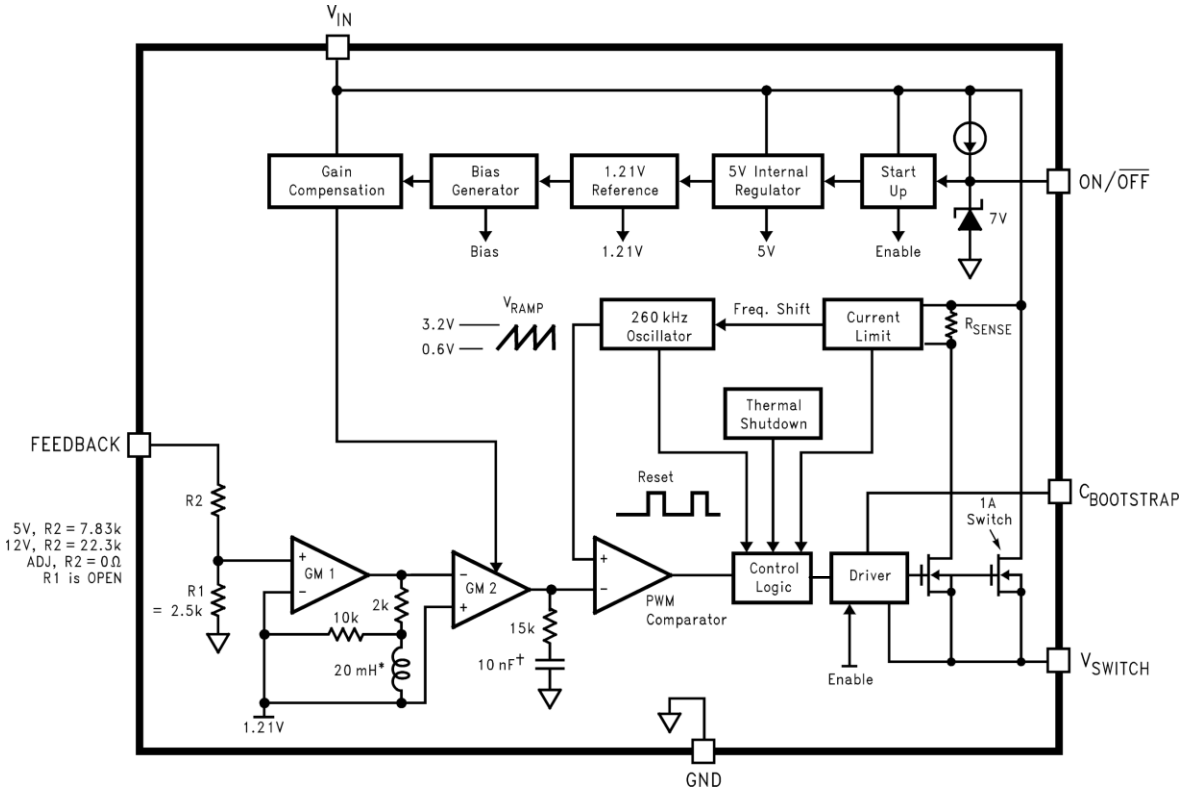

| FUNCTIONAL BLOCK DIAGRAM |
|
|
| APPLICATIONS |
| • Simple High Efficiency (>90%) Step-Down (Buck)
Regulator |
| • Efficient Preregulator for Linear Regulators |
| • Positive-to-Negative Converter |
| |
|
