• New product available:– LMR51430 4.5 to 36-V, 3-A, 500-kHz and 1.1
MHz synchronous converter
|
• For faster time to market:– TLVM13630 3 to 36-V, 3-A, 200-kHz to 2.2-MHz
power module
|
• Efficiency up to 94%
|
• Simple and easy to design with (using off-the-shelf
external components)
|
• 150-mΩ DMOS output switch
|
• 3.3-V, 5-V, 12-V fixed output and adjustable
(1.2 V to 37 V) versions
|
• 50-µA standby current when switched OFF
|
• ±2% maximum output tolerance over full line and
load conditions
|
|
| CATALOG |
LM2676SX-5.0/NOPB COUNTRY OF ORIGIN
|
LM2676SX-5.0/NOPB PARAMETRIC INFO
|
LM2676SX-5.0/NOPB PACKAGE INFO
|
LM2676SX-5.0/NOPB MANUFACTURING INFO
|
LM2676SX-5.0/NOPB PACKAGING INFO
|
LM2676SX-5.0/NOPB ECAD MODELS
|
LM2676SX-5.0/NOPB APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
|
PARAMETRIC INFO
|
| Type |
Step Down |
| Number of Outputs |
1 |
| Minimum Input Voltage (V) |
8 |
| Maximum Input Voltage (V) |
40 |
| Output Voltage (V) |
5 |
| Maximum Output Current (A) |
3 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Switching Frequency (kHz) |
260(Typ) |
| Efficiency (%) |
88(Typ) |
| Switching Regulator |
Yes |
| Operating Supply Voltage (V) |
8 to 40 |
| Output Type |
Fixed |
| Typical Quiescent Current (uA) |
4200 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Typical Switch Current (A) |
4.5 |
|
|
PACKAGE INFO
|
| Supplier Package |
TO-263 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
7 |
| Tab |
Tab |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
10.41(Max) |
| Package Width (mm) |
9.4(Max) |
| Package Height (mm) |
4.65(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
4.96(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Double Deca Watt Package |
| Package Family Name |
TO-263 |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
245 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|

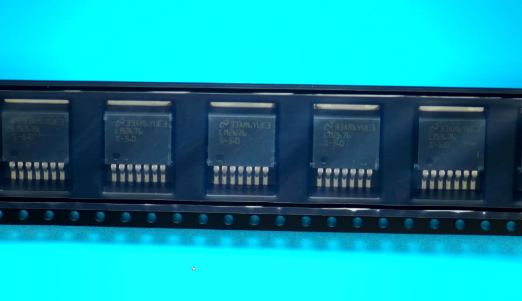

PACKAGING INFO
|
| Packaging Suffix |
X |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
500 |
| Packaging Document |
Link to Datasheet |
|
|

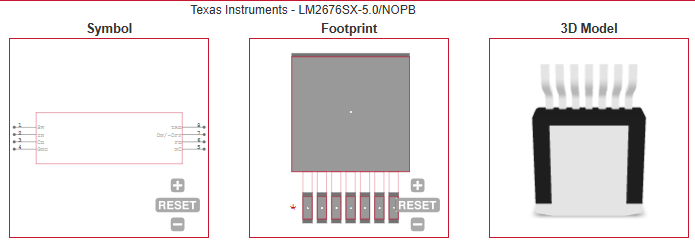

ECAD MODELS
|
|
|
APPLICATIONS
|
• Communication module
|
| • Electricity meter |
| • Calling button operating panel |
| • Motor drives |
|
| |
