• Efficiency Up to 92%
|
• Simple and Easy to Design Using Off-the-ShelfExternal Components
|
• 120-mΩ DMOS Output Switch
|
• 3.3-V, 5-V, and 12-V Fixed Output and Adjustable(1.2 V to 37 V) Versions
|
• 50-μA Standby Current When Switched OFF
|
• ±2% Maximum Output Tolerance Over Full Lineand Load Conditions
|
• Wide Input Voltage Range: 8 V to 40 V
|
• 260-kHz Fixed Frequency Internal Oscillator
|
• −40 to 125°C Operating Junction TemperatureRange
|
• Create a Custom Design Using the LM2678 Withthe WEBENCH® Power Designer
|
|
| CATALOG |
LM2678S-5.0/NOPB Country of Origin
|
LM2678S-5.0/NOPB Parametric Info
|
LM2678S-5.0/NOPB Package Info
|
LM2678S-5.0/NOPB Manufacturing Info
|
LM2678S-5.0/NOPB Packaging Info
|
LM2678S-5.0/NOPB ECAD Models
|
LM2678S-5.0/NOPB Functional Block Diagram
|
LM2678S-5.0/NOPB Applications
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
|
PARAMETRIC INFO
|
| Type |
Step Down |
| Number of Outputs |
1 |
| Minimum Input Voltage (V) |
8 |
| Maximum Input Voltage (V) |
40 |
| Output Voltage (V) |
5 |
| Maximum Output Current (A) |
5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Switching Frequency (kHz) |
260(Typ) |
| Efficiency (%) |
84(Typ) |
| Switching Regulator |
Yes |
| Operating Supply Voltage (V) |
8 to 40 |
| Output Type |
Fixed |
| Typical Quiescent Current (uA) |
4200 |
|
|

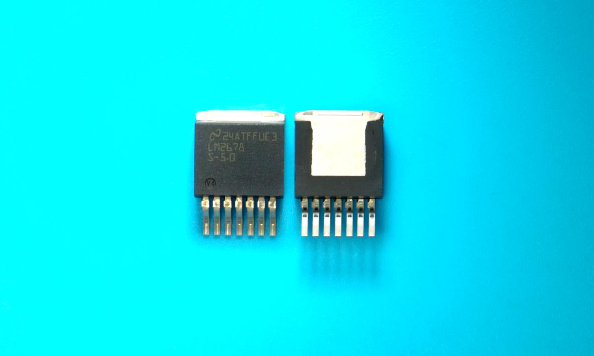

PACKAGE INFO
|
| Supplier Package |
TO-263 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
7 |
| Tab |
Tab |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
10.41(Max) |
| Package Width (mm) |
9.4(Max) |
| Package Height (mm) |
4.65(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
4.96(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Double Deca Watt Package |
| Package Family Name |
TO-263 |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
245 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Quantity Of Packaging |
45 |
| Packaging Document |
Link to Datasheet |
|
|

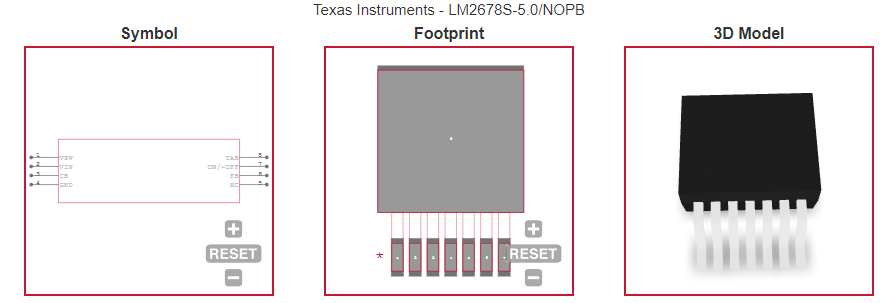

ECAD MODELS
|
|
|

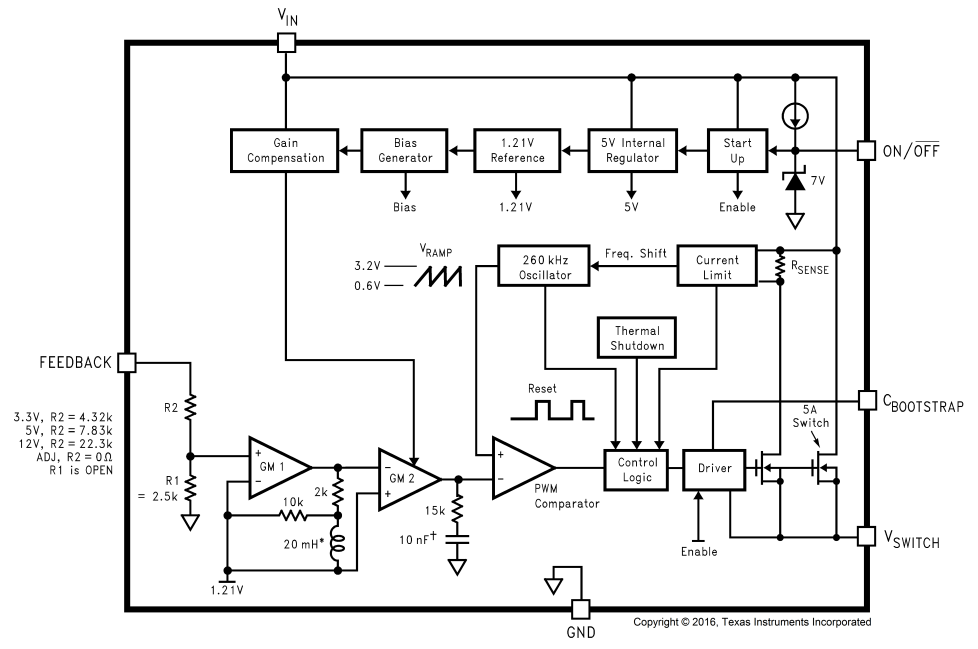

FUNCTIONAL BLOCK DIAGRAM
|
|
|
APPLICATIONS
|
• Simple-to-Design, High Efficiency (>90%) StepDown Switching Regulators
|
• Efficient System Preregulator for Linear VoltageRegulators
|
• Battery Chargers
|
|
|
