• LM27313-Q1 is an Automotive-Grade Product that is AEC-Q100 Grade 1 Qualified (–40°C to +125°C Operating Junction Temperature)
|
• 30-V DMOS FET Switch
|
• 1.6-MHz Switching Frequency
|
| • Low RDS(ON) DMOS FET |
| • Switch Current up to 800 mA |
| • Wide Input Voltage Range (2.7 V to 14 V) |
| • Low Shutdown Current (< 1 µA) |
| • 5-Lead SOT-23 Package |
| • Uses Tiny Capacitors and Inductors |
| • Cycle-by-Cycle Current Limiting |
| • Internally Compensated |
|
| CATALOG |
| LM27313XQMF/NOPB COUNTRY OF ORIGIN |
LM27313XQMF/NOPB PARAMETRIC INFO
|
LM27313XQMF/NOPB PACKAGE INFO
|
LM27313XQMF/NOPB MANUFACTURING INFO
|
LM27313XQMF/NOPB PACKAGING INFO
|
LM27313XQMF/NOPB EACD MODELS
|
| LM27313XQMF/NOPB APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Malaysia |
|
PARAMETRIC INFO
|
| Type |
Step Up |
| Number of Outputs |
1 |
| Minimum Input Voltage (V) |
2.7 |
| Maximum Input Voltage (V) |
14 |
| Output Voltage (V) |
5 to 28 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Supplier Temperature Grade |
Automotive |
| Switching Frequency (kHz) |
1600(Typ) |
| Switching Regulator |
Yes |
| Output Type |
Adjustable |
| Typical Quiescent Current (uA) |
2100 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Typical Switch Current (A) |
1.25 |
|
|
PACKAGE INFO
|
| Supplier Package |
SOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
5 |
| Lead Shape |
Gull-wing |
| PCB |
5 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.95 |
| Package Length (mm) |
3.05(Max) |
| Package Width (mm) |
1.75(Max) |
| Package Height (mm) |
1.1 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
3.05(Max) |
| Package Overall Width (mm) |
3(Max) |
| Package Overall Height (mm) |
1.45(Max) |
| Seated Plane Height (mm) |
1.45(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
MO-178AA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging |

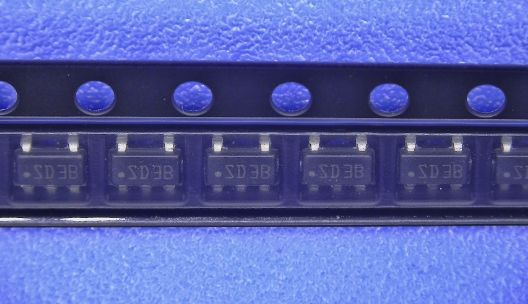

Tape and Reel |
| Quantity Of Packaging |
1000 |
| Packaging Document |
Link to Datasheet |
|
|

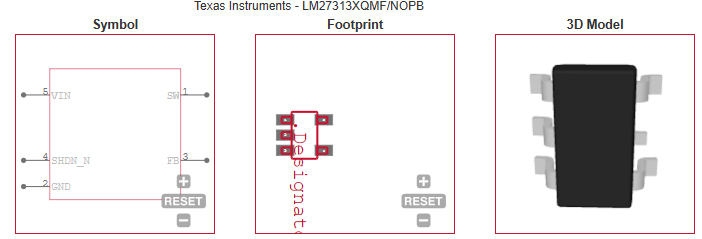

ECAD MODELS
|
|
|
| APPLICATIONS |
| • White LED Current Source |
| • PDAs and Palm-Top Computers |
| • Digital Cameras |
| • Portable Phones, Games, and Media Players |
| • GPS Devices |
| |
