• LM2840-Q1, LM2841-Q1, and LM2842-Q1 are Qualified for Automotive Applications
|
• Input Voltage Range of 4.5 V to 42 V
|
• Output Current Options of 100 mA, 300 mA, and 600 mA
|
• Feedback Pin Voltage of 0.765 V
|
• 550-kHz (X) or 1.25-MHz (Y) Switching Frequency
|
|
| CATALOG |
LM2841YMK-ADJL/NOPB COUNTRY OF ORIGIN
|
LM2841YMK-ADJL/NOPB PARAMETRIC INFO
|
LM2841YMK-ADJL/NOPB PACKAGE INFO
|
LM2841YMK-ADJL/NOPB MANUFACTURING INFO
|
LM2841YMK-ADJL/NOPB PACKAGING INFO
|
LM2841YMK-ADJL/NOPB ECAD MODELS
|
LM2841YMK-ADJL/NOPB APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
China
|
Malaysia
|
Philippines
|
|
PARAMETRIC INFO
|
| Type |
Step Down |
| Number of Outputs |
1 |
| Minimum Input Voltage (V) |
4.5 |
| Maximum Input Voltage (V) |
42 |
| Output Voltage (V) |
0.765 to 34 |
| Maximum Output Current (A) |
0.3 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Switching Frequency (kHz) |
1250(Typ) |
| Switching Regulator |
Yes |
| Operating Supply Voltage (V) |
4.5 to 42 |
| Output Type |
Adjustable |
| Typical Quiescent Current (uA) |
16 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Typical Switch Current (A) |
0.525 |
|
|
PACKAGE INFO
|

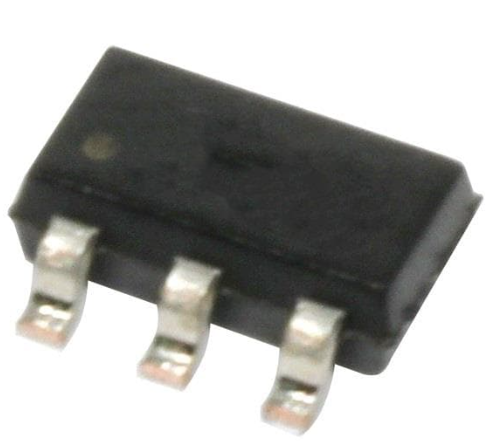

| Supplier Package |
TSOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
6 |
| Lead Shape |
Gull-wing |
| PCB |
6 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.95 |
| Package Length (mm) |
3.05(Max) |
| Package Width (mm) |
1.75(Max) |
| Package Height (mm) |
1(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
3.05(Max) |
| Package Overall Width (mm) |
3.05(Max) |
| Package Overall Height (mm) |
1.1(Max) |
| Seated Plane Height (mm) |
1.1(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Thin Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
MO-193 |
| Package Outline |
Link to Datasheet |
| Maximum PACKAGE_DIMENSION_H |
1 |
| Minimum PACKAGE_DIMENSION_H |
0.7 |
| Maximum PACKAGE_DIMENSION_L |
3.05 |
| Minimum PACKAGE_DIMENSION_L |
2.75 |
| Maximum PACKAGE_DIMENSION_W |
1.75 |
| Minimum PACKAGE_DIMENSION_W |
1.45 |
| Maximum Diameter |
N/R |
| Minimum Diameter |
N/R |
| Maximum Seated_Plane_Height |
1.1 |
| Minimum Seated_Plane_Height |
0.7 |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
| Reel Diameter (in) |
7 |
| Reel Width (mm) |
8.4 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Component Orientation |
Q3 |
| Packaging Document |
Link to Datasheet |
|
|

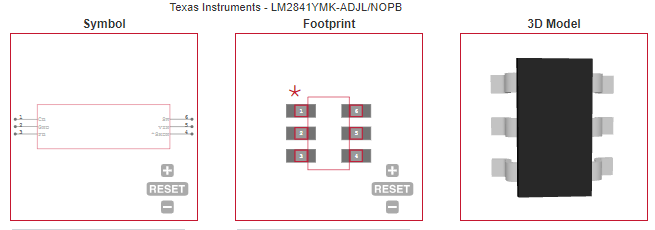

ECAD MODELS
|
 |
|
| APPLICATIONS |
| • Battery-Powered Equipment |
| • Industrial Distributed Power Applications |
| • Portable Media Players |
| • Portable Hand-Held Instruments |
| |
