• Input−to−Output Voltage Differential of < 0.6 V @ 100 mA
|
• Output Current in Excess of 100 mA
|
• Low Bias Current
|
| • 60 V Load Dump Protection |
| • −50 V Reverse Transient Protection |
| • Internal Current Limiting with Thermal Shutdown |
| • Temporary Mirror−Image Protection |
| • Ideally Suited for Battery Powered Equipment |
| • Economical 5−Lead TO−220 Package with Two Optional Leadforms |
| • Available in Surface Mount SOP−8, D2PAK and DPAK Packages |
| • High Accuracy (2.5%) Reference (LM2931AC) Available |
| • NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable |
| • Pb−Free Packages are Available |
| |
| CATALOG |
| LM2931CDR2G COUNTRY OF ORIGIN |
LM2931CDR2G PARAMETRIC INFO
|
LM2931CDR2G PACKAGE INFO
|
LM2931CDR2G MANUFACTURING INFO
|
LM2931CDR2G PACKAGING INFO
|
LM2931CDR2G EACD MODELS
|
| LM2931CDR2G APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Philippines |
| China |
| Thailand |
|
PARAMETRIC INFO
|
| Type |
LDO |
| Number of Outputs |
1 |
| Maximum Output Current (A) |
0.1(Min) |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Output Type |
Adjustable |
| Output Voltage Range (V) |
1.8 to 10|10 to 20|20 to 50 |
| Junction to Ambient |
160°C/W |
| Junction to Case |
25°C/W |
| Polarity |
Positive |
| Special Features |
Current Limit|Thermal Shutdown Protection |
| Load Regulation |
1%/V |
| Line Regulation |
1.5mV/V |
| Maximum Dropout Voltage @ Current (V) |
0.2@10mA|0.6@100mA |
| Minimum Input Voltage (V) |
2.5 |
| Maximum Input Voltage (V) |
40 |
| Output Voltage (V) |
2.7 to 29.5 |
| Typical Dropout Voltage @ Current (V) |
0.015@10mA|0.16@100mA |
| Reference Voltage (V) |
1.26 |
| Accuracy (%) |
±5 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
SOIC N |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
5(Max) |
| Package Width (mm) |
4(Max) |
| Package Height (mm) |
1.5(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5(Max) |
| Package Overall Width (mm) |
6.2(Max) |
| Package Overall Height (mm) |
1.75(Max) |
| Seated Plane Height (mm) |
1.75(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline IC Narrow Body |
| Package Family Name |
SO |
| Jedec |
MS-012AA |
| Package Outline |
Link to Datasheet |
|
| |
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
5 to 6 |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
CuFeZnPAg |
| Number of Wave Cycles |
2 |
|
|

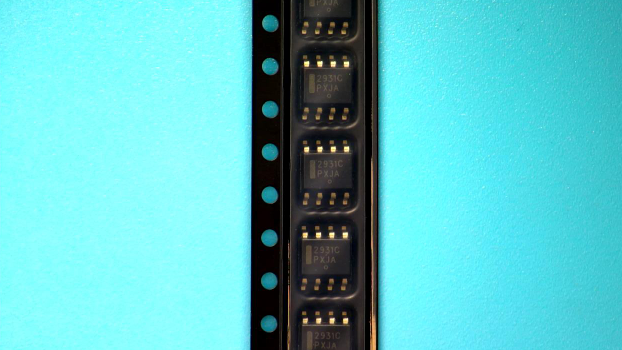

PACKAGING INFO
|
| Packaging Suffix |
R2 |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
| Packaging Document |
Link to Datasheet |
|
|

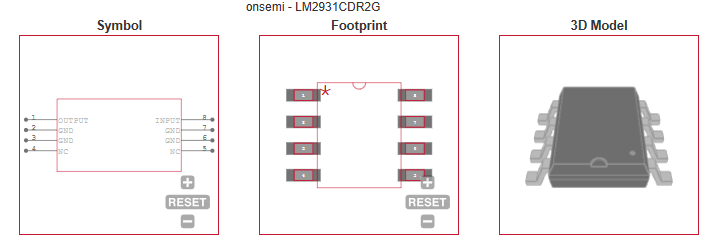

ECAD MODELS
|
|
|
| APPLICATIONS |
| • Battery Powered Consumer Products |
| • Hand−held Instruments |
| • Camcorders and Cameras |
| |
