• LM2936 Operating VIN range of 5.5 V to 40 V
|
• LM2936HV Operating VIN range of 5.5 V to 60 V
|
• Ultra Low Quiescent Current (IQ ≤ 15 μA for I OUT = 100 μA)
|
• Fixed 3-V, 3.3-V or 5-V with 50-mA Output
|
• ±2% Initial Output Tolerance
|
• ±3% Output Tolerance Over Line, Load, and Temperature
|
• Dropout Voltage Typically 200 mV at IOUT = 50 mA
|
• –24-V Input Voltage Protection
|
• –50-V Input Transient Protection
|
• Internal Short Circuit Current Limit
|
• Internal Thermal Shutdown Protection
|
• Shutdown Pin Available with LM2936BM Package
|
|
| CATALOG |
LM2936M-3.3/NOPB COUNTRY OF ORIGIN
|
LM2936M-3.3/NOPB PARAMETRIC INFO
|
LM2936M-3.3/NOPB PACKAGE INFO
|
LM2936M-3.3/NOPB MANUFACTURING INFO
|
LM2936M-3.3/NOPB PACKAGING INFO
|
LM2936M-3.3/NOPB ECAD MODELS
|
LM2936M-3.3/NOPB APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Mexico
|
China
|
Malaysia
|
|
PARAMETRIC INFO
|
| Type |
LDO |
| Number of Outputs |
1 |
| Maximum Output Current (A) |
0.05 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Output Type |
Fixed |
| Output Voltage Range (V) |
1.8 to 10 |
| Junction to Ambient |
140°C/W |
| Junction to Case |
45°C/W |
| Polarity |
Positive |
| Special Features |
Current Limit|Reverse Battery Protection|Short Circuit Protection|Thermal Shutdown Protection |
| Load Regulation |
30mV |
| Line Regulation |
30mV |
| Maximum Quiescent Current (mA) |
0.02 |
| Maximum Dropout Voltage @ Current (V) |
0.1@100uA|0.4@50mA |
| Minimum Input Voltage (V) |
5.5 |
| Maximum Input Voltage (V) |
40 |
| Output Voltage (V) |
3.3 |
| Typical Quiescent Current (mA) |
0.015 |
| Typical Dropout Voltage @ Current (V) |
0.05@100uA|0.2@50mA |
| Accuracy (%) |
±2 |
| Typical PSRR (dB) |
35 |
| Typical Output Capacitance (uF) |
10(Min) |
| Typical Output Noise Voltage (uVrms) |
500 |
|
|

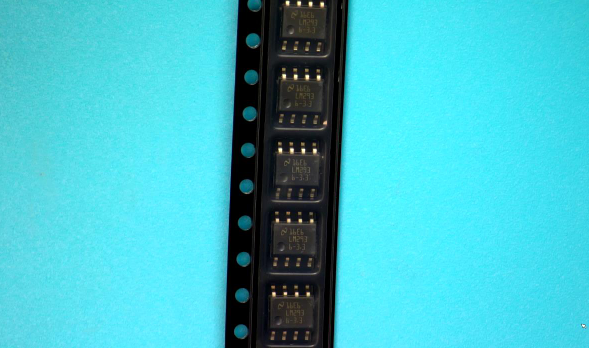

PACKAGE INFO
|
| Supplier Package |
SOIC |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
5(Max) |
| Package Width (mm) |
3.98(Max) |
| Package Height (mm) |
1.5(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5(Max) |
| Package Overall Width (mm) |
6.19(Max) |
| Package Overall Height (mm) |
1.75(Max) |
| Seated Plane Height (mm) |
1.75(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline IC |
| Package Family Name |
SO |
| Jedec |
MS-012AA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Quantity Of Packaging |
95 |
| Packaging Document |
Link to Datasheet |
|
|

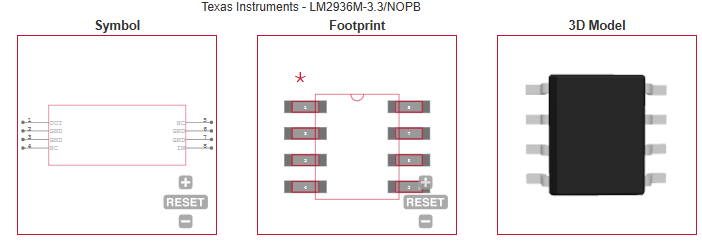

ECAD MODELS
|
|
|
APPLICATIONS
|
| • Automotive |
| • Industrial Controls |
| • Point of Load |
| |
