• Fully Specified for Operation Over −40°C to 125°C
|
• Output Current in Excess of 500 mA
|
• Output Trimmed for 5% Tolerance Under all Operating Conditions
|
| • Typical Dropout Voltage of 0.5 V at Full Rated Load Current |
| • Wide Output Capacitor ESR Range, up to 3 Ω |
| • nternal Short Circuit and Thermal Overload Protection |
| • Reverse Battery Protection |
| • 60-V Input Transient Protection |
| • Mirror Image Insertion Protection |
| |
| CATALOG |
| LM2937ESX-3.3/NOPB COUNTRY OF ORIGIN |
LM2937ESX-3.3/NOPB PARAMETRIC INFO
|
LM2937ESX-3.3/NOPB PACKAGE INFO
|
LM2937ESX-3.3/NOPB MANUFACTURING INFO
|
LM2937ESX-3.3/NOPB PACKAGING INFO
|
LM2937ESX-3.3/NOPB EACD MODELS
|
| LM2937ESX-3.3/NOPB APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Malaysia |
| China |
|
PARAMETRIC INFO
|
| type |
LDO |
| Number of Outputs |
1 |
| Maximum Output Current (A) |
0.5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Output Type |
Fixed |
| Output Voltage Range (V) |
1.8 to 10 |
| Junction to ambient |
41.8°C/W |
| Junction to Case |
43.5°C/W |
| Polarity |
Positive |
| Special Features |
Short Circuit Protection|Thermal Protection |
| Load Regulation |
3.3mV(Typ) |
| Line Regulation |
9.9mV(Typ) |
| Maximum Quiescent Current (mA) |
10 |
| Minimum Input Voltage (V) |
4.3 |
| Maximum Input Voltage (V) |
26 |
| Output Voltage (V) |
3.3 |
| Typical Quiescent Current (mA) |
2 |
| Typical Dropout Voltage @ Current (V) |
0.5@500mA |
| Accuracy (%) |
±5 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Typical PSRR (dB) |
57 |
| Typical Output Capacitance (uF) |
10(Min) |
| Typical Output Noise Voltage (uVrms) |
150 |
|
|
PACKAGE INFO
|
| Supplier packaging |
DDPAK |
| Basic package type |
Lead-Frame SMT |
| Number of pins |
4 |
| Pin shape |
Gull-wing |
| PCB |
3 |
| ears |
ears |
| Pin spacing (mm) |
2.54 |
| Package length (mm) |
10.67(Max) |
| Package width (mm) |
9.65(Max) |
| Package height (mm) |
4.83(Max) |
| Package diameter (mm) |
N/R |
| Package Overall Length (mm) |
10.67(Max) |
| Package Overall Width (mm) |
15.88(Max) |
| Package Overall Height (mm) |
5.08(Max) |
| Mounting surface height (mm) |
5.08(Max) |
| Install |
Surface Mount |
| Package weight (g) |
not applicable |
| Packaging materials |
Plastic |
| package instruction |
Double Deca Watt Package |
| Package series name |
TO-263 |
| JEDEC |
TO-263AA |
| Package outline |
Link to datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum reflow temperature (°C) |
245 |
| Reflow soldering time (seconds) |
30 |
| Number of reflow cycles |
3 |
| standard |
J-STD-020D |
| Reflow temperature source |
Link to datasheet |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Lead Finish(Plating) |
Matt Sn |
| Plating materials |
not applicable |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|

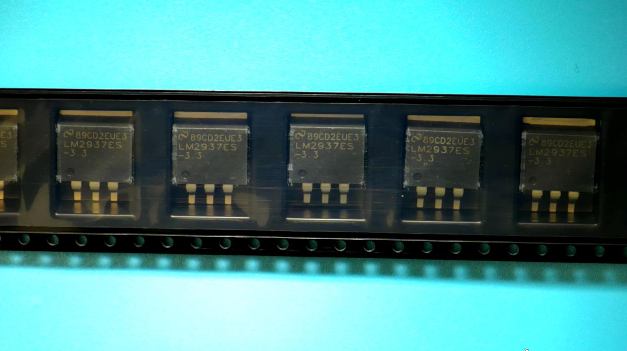

PACKAGING INFO
|
| Packaging Suffix |
X |
| Package |
Tape and reel packaging |
| Packing quantity |
500 |
| Reel Diameter (in) |
13 |
| Reel Width (mm) |
24.4 |
| Tape Pitch (mm) |
16 |
| Tape Width (mm) |
twenty four |
| Component Orientation |
Q2 |
| packaging type file |
Link to datasheet |
|
|

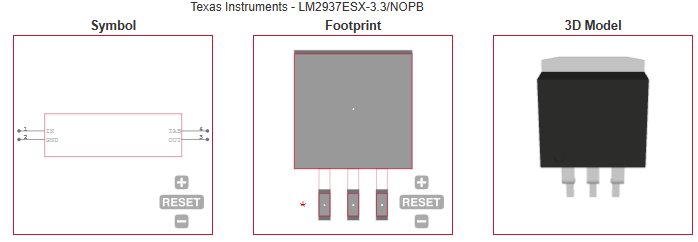

ECAD MODELS
|
|
|
| APPLICATIONS |
| • Automotive |
| • Industrial Control |
| • Point-of-Load regulation |
| |
