■ Wide single-supply voltage range or dual
supplies: +2 V to +36 V or ±1 V to ±18 V
|
■ Very low supply current (0.45 mA) independent
of supply voltage (1 mW/comparator at +5 V)
|
■ Low input bias current: 20 nA typ
|
■ Low input offset current: ±3 nA typ.
|
■ Low input offset voltage: ±1 mV typ.
|
■ Input common-mode voltage range includes
ground
|
■ Low output saturation voltage: 80 mV typ.
(Isink = 4 mA)
|
■ Differential input voltage range equal to the
supply voltage
|
■ TTL, DTL, ECL, MOS, CMOS compatible
outputs
|
■ Available in DIP8, SO-8, TSSOP8, MiniSO-8,
and DFN8 2 x 2 mm packages
|
|
| CATALOG |
| LM293N COUNTRY OF ORIGIN |
LM293N ROHS
|
LM293N LIFECYCLE
|
LM293N PARAMETRIC INFO
|
LM293N PACKAGE INFO
|
LM293N MANUFACTURING INFO
|
LM293N PACKAGING INFO
|

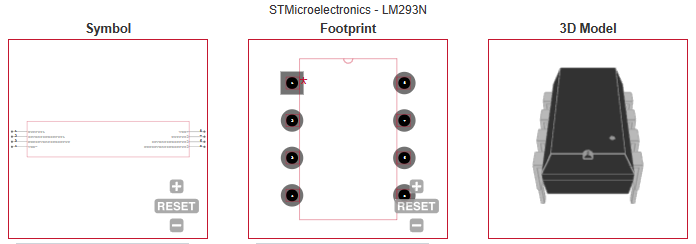

LM293N ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
Thailand
|
Philippines
|
Taiwan (Province of China)
|
|
ROHS
|
No 2011/65/EU, 2015/863
|
|
LIFECYCLE
|
Obsolete
|
|
PARAMETRIC INFO
|
| Rail to Rail |
No |
| Manufacturer Type |
Voltage Comparator |
| Process Technology |
Bipolar |
| Number of Channels per Chip |
2 |
| Output Type |
Open Collector |
| Maximum Input Offset Voltage (mV) |
5@30V |
| Maximum Input Bias Current (uA) |
0.25@5V |
| Typical Voltage Gain (dB) |
106.02 |
| Typical Voltage Gain Range (dB) |
90 to 110 |
| Strobe Capability |
No |
| Typical Output Current (mA) |
18@5V |
| Typical Response Time (us) |
1.3 |
| Typical Response Time Range (us) |
0.5 to 5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
105 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Power Supply Type |
Single|Dual |
| Maximum Operating Supply Voltage (V) |
±18|36 |
| Minimum Single Supply Voltage (V) |
2 |
| Typical Single Supply Voltage (V) |
3|5|9|12|15|18|24|28 |
| Maximum Single Supply Voltage (V) |
36 |
| Minimum Dual Supply Voltage (V) |
±1 |
| Typical Dual Supply Voltage (V) |
±3|±5|±9|±12|±15 |
| Maximum Dual Supply Voltage (V) |
±18 |
| Maximum Quiescent Current (mA) |
1@5V |
|
|

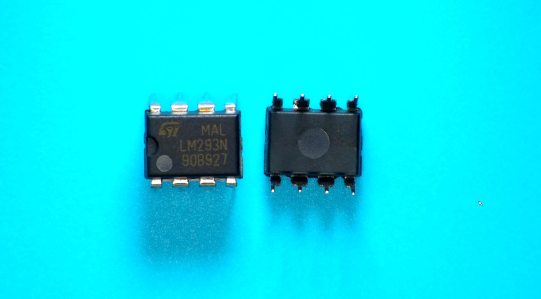

PACKAGE INFO
|
| Supplier Package |
PDIP |
| Basic Package Type |
Through Hole |
| Pin Count |
8 |
| Lead Shape |
Through Hole |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
2.54 |
| Package Length (mm) |
9.27 |
| Package Width (mm) |
6.35 |
| Package Height (mm) |
3.3 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
5.33(Max) |
| Mounting |
Through Hole |
| Package Material |
Plastic |
| Package Description |
Plastic Dual In Line Package |
| Package Family Name |
DIP |
| Jedec |
MS-001BA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
IPC-1752 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ag |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
| Number of Wave Cycles |
2 |
|
|
PACKAGING INFO
|
|
|
|
ECAD MODELS
|
|
|
