| • Output voltage adjustable down to VREF |
| • 1.5 A guaranteed output current |
| • 0.3%/V typical load regulation |
| • 0.3%/V typical load regulation |
| • 0.01%/V typical line regulation |
| • Current limit constant with temperature |
| • Ripple rejection: 77 dB |
| • Standard 3-lead transistor packages |
| • Excellent thermal regulation: 0.002%/V |
| • 50 ppm/°C temperature coefficient |
|
| CATALOG |
| LM337SP COUNTRY OF ORIGIN |
| LM337SP PARAMETRIC INFO |
| LM337SP PACKAGE INFO |
| LM337SP MANUFACTURING INFO |
| LM337SP PACKAGING INFO |
| LM337SP ECAD MODELS |
|
| COUNTRY OF ORIGIN |
| China |
|
| PARAMETRIC INFO |
| Type |
Standard |
| Number of Outputs |
1 |
| Maximum Output Current (A) |
1.5 |
| Minimum Operating Temperature (°C) |
0 |
| Maximum Operating Temperature (°C) |
125 |
| Output Type |
Adjustable |
| Output Voltage Range (V) |
<1.8 |
| Junction to Ambient |
70°C/W |
| Junction to Case |
3°C/W |
| Polarity |
Negative |
| Special Features |
Current Limit|Safe Area Protection|Thermal Protection |
| Load Regulation |
1% |
| Line Regulation |
0.04%/V |
| Maximum Power Dissipation (mW) |
15000 |
| Output Voltage (V) |
-1.2 to -37 |
| Reference Voltage (V) |
-1.287 |
| Supplier Temperature Grade |
Extended |
|
| |
| PACKAGE INFO |
| Supplier Package |
TO-220AB |
| Basic Package Type |
Through Hole |
| Pin Count |
3 |
| Lead Shape |
Through Hole |
| PCB |
3 |
| Tab |
Tab |
| Pin Pitch (mm) |
2.7(Max) |
| Package Length (mm) |
10.4(Max) |
| Package Width (mm) |
4.6(Max) |
| Package Height (mm) |
9.15(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
10.4(Max) |
| Package Overall Width (mm) |
4.6(Max) |
| Package Overall Height (mm) |
19.68(Max) |
| Seated Plane Height (mm) |
19.68(Max) |
| Mounting |
Through Hole |
| Package Weight (g) |
1.9 |
| Package Material |
Plastic |
| Package Description |
Transistor Outline Package |
| Package Family Name |
TO-220 |
| Jedec |
TO-220AB |
| Package Outline |
Link to Datasheet |
|
| |
| MANUFACTURING INFO |
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Number of Reflow Cycle |
N/R |
| Standard |
N/R |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
| Number of Wave Cycles |
2 |
|
| |
| PACKAGING INFO |
| Packaging |
Tube |
| Packaging Document |
Link to Datasheet |
|
| |

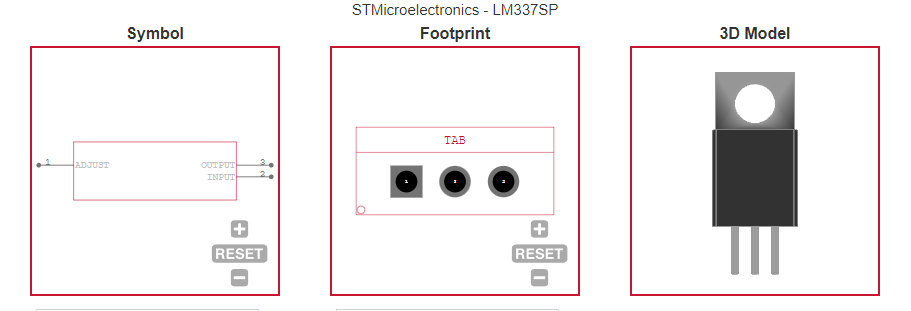

| ECAD MODELS |
 |
| |
|
| |
