| • Input Voltage Range: up to 30 V |
| • 3.3-V, 5-V, 12-V, and 15-V Versions Available |
| • Packaged in the Tiny 3-Lead SOT-23 Package |
| • 30-V Maximum Input for Operation |
| • 1.2-V Ensured Maximum Dropout Over Full Load and Temperature Ranges |
| • 100-mA Ensured Minimum Load Current |
| • ±5% Ensured Output Voltage Tolerance Over Full Load and Temperature Ranges |
| • −40 to +125°C Junction Temperature Range for Operation |
|
| CATALOG |
| LM3480IM3X-5.0/NOPB COUNTRY OF ORIGIN |
| LM3480IM3X-5.0/NOPB PARAMETRIC INFO |
| LM3480IM3X-5.0/NOPB PACKAGE INFO |
| LM3480IM3X-5.0/NOPB MANUFACTURING INFO |
| LM3480IM3X-5.0/NOPB PACKAGING INFO |
| LM3480IM3X-5.0/NOPB ECAD MODELS |
| LM3480IM3X-5.0/NOPB FUNCTIONAL BLOCK DIAGRAM |
| LM3480IM3X-5.0/NOPB APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Malaysia |
|
| PARAMETRIC INFO |
| Type |
LDO |
| Number of Outputs |
1 |
| Maximum Output Current (A) |
0.1(Min) |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Output Type |
Fixed |
| Output Voltage Range (V) |
1.8 to 10 |
| Junction to Ambient |
269.6°C/W |
| Junction to Case |
141.1°C/W |
| Polarity |
Positive |
| Load Regulation |
20mV(Typ) |
| Line Regulation |
12mV(Typ) |
| Maximum Dropout Voltage @ Current (V) |
0.9@10mA|1.1@100mA |
| Maximum Power Dissipation (mW) |
250 |
| Minimum Input Voltage (V) |
0 |
| Maximum Input Voltage (V) |
30 |
| Output Voltage (V) |
5 |
| Typical Quiescent Current (mA) |
2 |
| Typical Dropout Voltage @ Current (V) |
0.7@10mA|0.9@100mA |
| Accuracy (%) |
±5 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Typical PSRR (dB) |
45 |
| Typical Output Capacitance (uF) |
0.1(Min) |
| Typical Output Noise Voltage (uVrms) |
150 |
|
| |
| PACKAGE INFO |
| Supplier Package |
SOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
3 |
| Lead Shape |
Gull-wing |
| PCB |
3 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.95 |
| Package Length (mm) |
3.04(Max) |
| Package Width (mm) |
1.4(Max) |
| Package Height (mm) |
0.95 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
3.04(Max) |
| Package Overall Width (mm) |
2.64(Max) |
| Package Overall Height (mm) |
1.12(Max) |
| Seated Plane Height (mm) |
1.12(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
TO-236AB |
| Package Outline |
Link to Datasheet |
|
| |
| MANUFACTURING INFO |
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
5 Years |
| Shelf Life Condition |
N/A |
|
| |

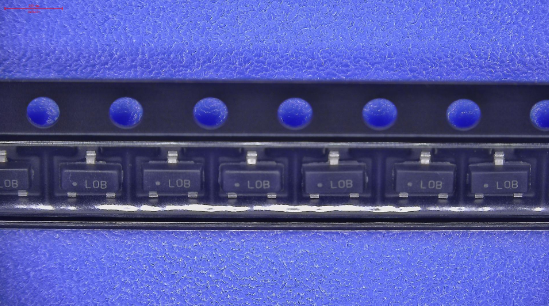

| PACKAGING INFO |
| Packaging Suffix |
X |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Reel Diameter (in) |
7 |
| Reel Width (mm) |
8.4 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Component Orientation |
Q3 |
| Packaging Document |
Link to Datasheet |
|
| |

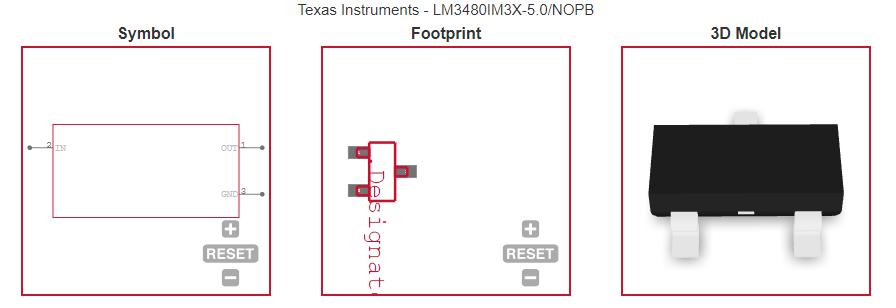

| ECAD MODELS |
 |
|

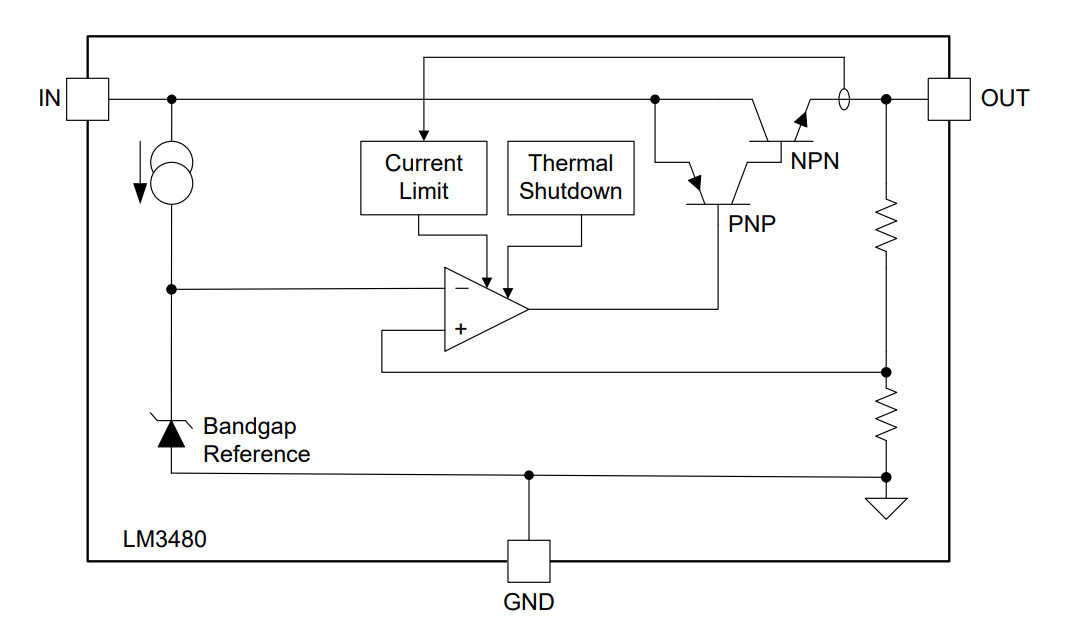

| FUNCTIONAL BLOCK DIAGRAM |
 |
|
| APPLICATIONS |
| • Tiny Alternative to LM78Lxx Series and Similar Devices |
| • Tiny 5-V ±5% to 3.3-V, 100-mA Converter |
| • Post Regulator for Switching DC/DC Converter |
| • Bias Supply for Analog Circuits |
|
