• SOT-23 AEC Q-100 Grades 1 and 3 Available
|
• Small Packages: SOT-23, TO-92, and SC70
|
• No Output Capacitor Required
|
| • Tolerates Capacitive Loads |
| • Fixed Reverse Breakdown Voltages of 2.048 V, 2.5 V, 3 V, 4.096 V, 5 V, 8.192 V, and 10 V |
• Key Specifications (2.5-V LM4040-N)– Output Voltage Tolerance (A Grade, 25°C):±0.1% (Maximum)– Low Output Noise (10 Hz to 10 kHz): 35 μVrms
(Typical)– Wide Operating Current Range: 60 μA to 15mA– Industrial Temperature Range: −40°C to +85°C– Extended Temperature Range: −40°C to
+125°C– Low Temperature Coefficient: 100 ppm/°C(Maximum) |
| |
| CATALOG |
| LM4040AIM3-4.1/NOPB COUNTRY OF ORIGIN |
LM4040AIM3-4.1/NOPB PARAMETRIC INFO
|
LM4040AIM3-4.1/NOPB PACKAGE INFO
|
LM4040AIM3-4.1/NOPB MANUFACTURING INFO
|
LM4040AIM3-4.1/NOPB PACKAGING INFO
|
LM4040AIM3-4.1/NOPB EACD MODELS
|
| LM4040AIM3-4.1/NOPB APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| China |
| Philippines |
| Malaysia |
|
PARAMETRIC INFO
|
| Topology |
Shunt |
| Reference Type |
Precision |
| Output Voltage (V) |
4.096 |
| Initial Accuracy |
0.1% |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Supplier Temperature Grade |
Industrial |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-65 |
| Load Regulation |
3mV(Typ) |
| Regulation Condition Change In Load |
14mA |
| Maximum Output Current (mA) |
15 |
| Maximum Temperature Coefficient |
30ppm/°C(Typ) |
|
|
PACKAGE INFO
|
| Supplier Package |
SOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
3 |
| Lead Shape |
Gull-wing |
| PCB |
3 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.95 |
| Package Length (mm) |
3.04(Max) |
| Package Width (mm) |
1.4(Max) |
| Package Height (mm) |
0.95 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
3.04(Max) |
| Package Overall Width (mm) |
2.64(Max) |
| Package Overall Height (mm) |
1.12(Max) |
| Seated Plane Height (mm) |
1.12(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
TO-236 |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
|

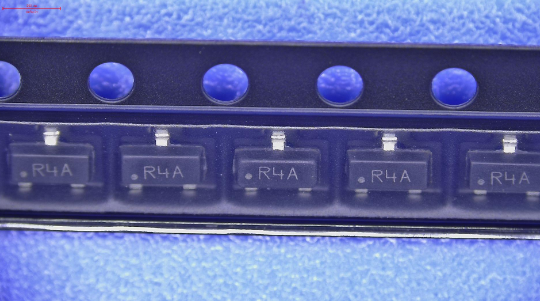

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Reel Diameter (in) |
7 |
| Reel Width (mm) |
8.4 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Component Orientation |
Q3 |
| Packaging Document |
Link to Datasheet |
|
|

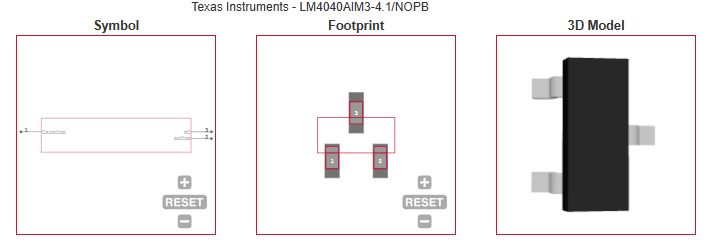

ECAD MODELS
|
|
|
| APPLICATIONS |
| • Portable, Battery-Powered Equipment |
| • Data Acquisition Systems |
| • Instrumentation |
| • Process Controls |
| • Energy Management |
| • Product Testing |
| • Automotives |
| • Precision Audio Components |
| |
