• Wide 7.5-V to 100-V input range
|
• Integrated 100-V high-side and low-side switches
|
• No schottky required
|
• Constant on-time control
|
• No loop compensation required
|
| • Ultra-fast transient response |
| • Nearly constant operating frequency
|
| • Intelligent peak current limit |
| • Adjustable output voltage from 1.225 V |
| • Precision 2% feedback reference |
| • Frequency adjustable to 1 MHz |
| • Adjustable undervoltage lockout (UVLO)
|
| • Remote shutdown |
|
| CATALOG |
LM5017SDX/NOPB COUNTRY OF ORIGIN
|
LM5017SDX/NOPB PARAMETRIC INFO
|
LM5017SDX/NOPB PACKAGE INFO
|
LM5017SDX/NOPB MANUFACTURING INFO
|
LM5017SDX/NOPB PACKAGING INFO
|
LM5017SDX/NOPB ECAD MODELS
|
LM5017SDX/NOPB APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
|
PARAMETRIC INFO
|
| Isolation |
Isolated |
| Type |
Synchronous Step Down |
| Number of Outputs |
1 |
| Minimum Input Voltage (V) |
7.5 |
| Maximum Input Voltage (V) |
100 |
| Output Voltage (V) |
1.225(Min) |
| Maximum Output Current (A) |
0.6 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Switching Frequency (kHz) |
1000 |
| Switching Regulator |
Yes |
| Operating Supply Voltage (V) |
6.25 to 8.55 |
| Output Type |
Adjustable |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
| Typical Switch Current (A) |
1.02 |
|
|
PACKAGE INFO
|
| Supplier Package |
WSON EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
No Lead |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.8 |
| Package Length (mm) |
4 |
| Package Width (mm) |
4 |
| Package Height (mm) |
0.8(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
4 |
| Package Overall Width (mm) |
4 |
| Package Overall Height (mm) |
0.8(Max) |
| Seated Plane Height (mm) |
0.8(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Very Very Thin Small Outline No Lead Package, Exposed Pad |
| Package Family Name |
SON |
| Jedec |
MO-229 |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
4500 |
|
|

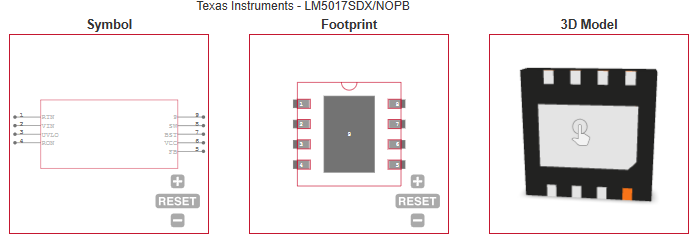

ECAD MODELS
|
|
|
APPLICATIONS
|
• Industrial programmable logic controllers (PLC)
|
| • Smart power meters
|
• Telecom primary and secondary side bias
|
• Low-power isolated DC/DC (Fly-Buck™)
|
|
| |
