• AEC-Q100 qualified for automotive applications– Device temperature grade 1: –40°C to +125°C ambient operating temperature– Device HBM ESD classification level 2– Device CDM ESD classification level C5
|
• Integrated synchronous rectification
|
• Input voltage 3.5 V to 60 V (65 V maximum)
|
• Output voltage 1 V to 95% VIN
|
• 15-µA Quiescent current in regulation
|
• Wide voltage conversion range– tON-MIN = 65 ns (typical)– tOFF-MIN = 95 ns (typical)
|
• System-level features– Synchronization to external clock– Power-good flag– Adjustable soft-start (6.3 ms default)
|
• Pin-selectable FPWM operation
|
|
| CATALOG |
LM76002QRNPRQ1 PARAMETRIC INFO
|
LM76002QRNPRQ1 PACKAGE INFO
|
LM76002QRNPRQ1 MANUFACTURING INFO
|
LM76002QRNPRQ1 PACKAGING INFO
|
LM76002QRNPRQ1 ECAD MODELS
|
LM76002QRNPRQ1 APPLICATIONS
|
|
PARAMETRIC INFO
|
| Type |
Synchronous Step Down |
| Number of Outputs |
1 |
| Minimum Input Voltage (V) |
3.5 |
| Maximum Input Voltage (V) |
60 |
| Output Voltage (V) |
1 to 57 |
| Maximum Output Current (A) |
2.5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Supplier Temperature Grade |
Automotive |
| Switching Frequency (kHz) |
300 to 2200 |
| Switching Regulator |
Yes |
| Operating Supply Voltage (V) |
3.5 to 60 |
| Output Type |
Adjustable |
| Typical Quiescent Current (uA) |
15 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Typical Switch Current (A) |
4.2 |
|
|
PACKAGE INFO
|
| Supplier Package |
WQFN EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
30 |
| Lead Shape |
No Lead |
| PCB |
30 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
6.1(Max) |
| Package Width (mm) |
4.1(Max) |
| Package Height (mm) |
0.75(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
0.8(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Very Very Thin Quad Flat No Lead Package, Exposed Pad |
| Package Family Name |
QFN |
|
|
MANUFACTURING INFO
|
| MSL |
2 |
| Lead Finish(Plating) |
Matte Sn|Au |
| Under Plating Material |
N/A|Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
|

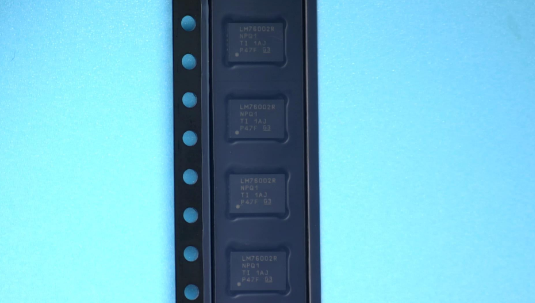

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Packaging Document |
Link to Datasheet |
|
|

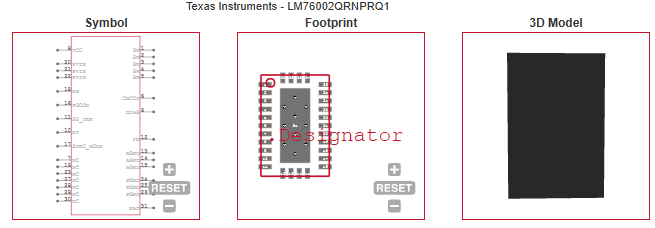

ECAD MODELS
|
|
|
APPLICATIONS
|
| • Camera applications for commercial vehicles |
| • Infotainment and cluster |
| • Hybrid electric vehicles |
| • Electric vehicles |
| |
