• For lower cost alternative, see the UA78L
|
• Input voltage up to 30 V
|
• Output voltage tolerances of ±5% over the temperature range
|
• Available output voltages: 5 V, 6.2 V, 8.2 V, 9 V, 12 V, and 15 V
|
• Output current of 100 mA
|
• Output transistor safe area protection
|
• Internal thermal overload protection
|
• Internal short-circuit current limit
|
• No external components
|
• Available in tiny DSBGA package
|
• Available in 3-pin TO-92 and 8-pin SOIC low profile packages
|
|
| CATALOG |
LM78L05AIMX/NOPB COUNTRY OF ORIGIN
|
LM78L05AIMX/NOPB PARAMETRIC INFO
|
LM78L05AIMX/NOPB PACKAGE INFO
|
LM78L05AIMX/NOPB MANUFACTURING INFO
|
LM78L05AIMX/NOPB PACKAGING INFO
|
LM78L05AIMX/NOPB ECAD MODELS
|
LM78L05AIMX/NOPB APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Philippines
|
Mexico
|
China
|
Malaysia
|
|
PARAMETRIC INFO
|
| Type |
Standard |
| Number of Outputs |
1 |
| Maximum Output Current (A) |
0.1 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Regulation Condition Change In Load |
99mA |
| Regulation Condition Change In Line |
13V |
| Output Type |
Fixed |
| Output Voltage Range (V) |
1.8 to 10 |
| Junction to Ambient |
128.8°C/W |
| Junction to Case |
76°C/W |
| Polarity |
Positive |
| Special Features |
Current Limit|Safe Area Protection|Short Circuit Protection|Thermal Shutdown Protection |
| Load Regulation |
60mV |
| Line Regulation |
75mV |
| Maximum Quiescent Current (mA) |
5 |
| Maximum Power Dissipation (mW) |
750 |
| Minimum Input Voltage (V) |
6.7 |
| Maximum Input Voltage (V) |
30 |
| Output Voltage (V) |
5 |
| Typical Quiescent Current (mA) |
3 |
| Typical Dropout Voltage @ Current (V) |
1.6@100mA |
| Accuracy (%) |
±5 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Typical PSRR (dB) |
62 |
| Typical Output Capacitance (uF) |
0.01(Min) |
| Typical Output Noise Voltage (uVrms) |
40 |
|
|
PACKAGE INFO
|
| Supplier Package |
SOIC |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
5(Max) |
| Package Width (mm) |
3.98(Max) |
| Package Height (mm) |
1.5(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5(Max) |
| Package Overall Width (mm) |
6.19(Max) |
| Package Overall Height (mm) |
1.75(Max) |
| Seated Plane Height (mm) |
1.75(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline IC |
| Package Family Name |
SO |
| Jedec |
MS-012AA |
| Package Outline |
Link to Datasheet |
|
|
| MANUFACTURING INFO |
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu |
|
|

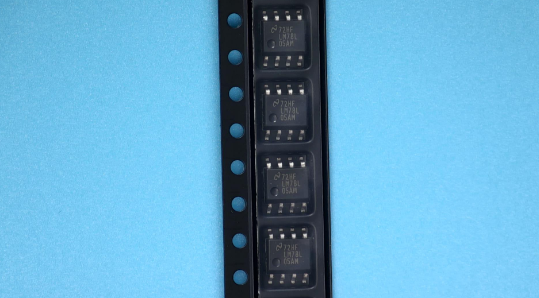

| PACKAGING INFO |
| Packaging Suffix |
X |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
| Reel Diameter (in) |
13 |
| Reel Width (mm) |
12.4 |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
12 |
| Component Orientation |
Q1 |
| Packaging Document |
Link to Datasheet |
|
|

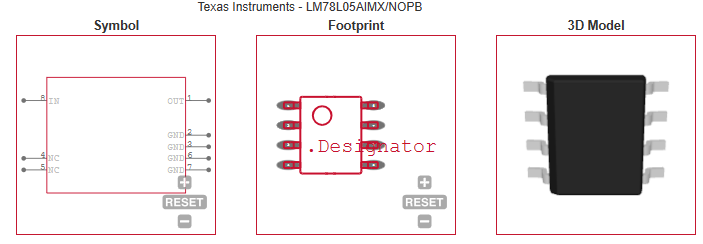

| ECAD MODELS |
 |
|
| APPLICATIONS |
| • Battery chargers |
| • Portable instrumentation |
| • LED lighting |
| • Appliances |
| |
