• Rail-to-rail input common-mode voltage range (specified over temperature)
|
• Rail-to-rail output swing (within 20mV of supply rail, 100kΩ load)
|
• Specified 3V, 5V, and 15V performance
|
| • Excellent CMRR and PSRR: 82dB |
| • Ultra-low input current: 20fA |
| • Specified for 2kΩ and 600Ω loads |
| • Improved replacement for TLC272, TLC277 |
|
| CATALOG |
| LMC6484AIMX/NOPB COUNTRY OF ORIGIN |
LMC6484AIMX/NOPB PARAMETRIC INFO
|
LMC6484AIMX/NOPB PACKAGE INFO
|
LMC6484AIMX/NOPB MANUFACTURING INFO
|
LMC6484AIMX/NOPB PACKAGING INFO
|
LMC6484AIMX/NOPB EACD MODELS
|
| LMC6484AIMX/NOPB APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Malaysia |
| Mexico |
| China |
|
PARAMETRIC INFO
|
| Manufacturer Type |
Precision Amplifier |
| Type |
Precision Amplifier |
| Rail to Rail |
Rail to Rail Input/Output |
| Minimum Single Supply Voltage (V) |
3 |
| Number of Channels per Chip |
4 |
| Process Technology |
CMOS |
| Minimum PSRR (dB) |
70 |
| Typical Single Supply Voltage (V) |
5|9|12|15 |
| Maximum Single Supply Voltage (V) |
15.5 |
| Output Type |
CMOS |
| Typical Gain Bandwidth Product (MHz) |
1.5 |
| Maximum Input Offset Voltage (mV) |
0.75@5V |
| Maximum Input Offset Current (uA) |
0.00000001(Typ)@5V |
| Maximum Operating Supply Voltage (V) |
15.5 |
| Maximum Input Bias Current (uA) |
0.000004@5V@-40C to 85C |
| Minimum CMRR (dB) |
70 |
| Maximum Supply Voltage Range (V) |
15 to 16 |
| Minimum CMRR Range (dB) |
70 to 71 |
| Typical Voltage Gain (dB) |
116.47 |
| Typical Slew Rate (V/us) |
1.3@5V |
| Typical Output Current (mA) |
30(Max) |
| Typical Input Noise Voltage Density (nV/rtHz) |
37@5V |
| Typical Noninverting Input Current Noise Density (pA/rtHz) |
0.03@5V |
| Typical Input Bias Current (uA) |
0.00000002@3V |
| Shut Down Support |
No |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Power Supply Type |
Single |
| Maximum Supply Current (mA) |
2.8@5V |
| Input Offset Voltage Drift (uV/°C) |
±1(Typ)@(-40 to 85) |
|
|
PACKAGE INFO
|
| Supplier Package |
SOIC |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
14 |
| Lead Shape |
Gull-wing |
| PCB |
14 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
8.75(Max) |
| Package Width (mm) |
4(Max) |
| Package Height (mm) |
1.5(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
8.75(Max) |
| Package Overall Width (mm) |
6.2(Max) |
| Package Overall Height (mm) |
1.75(Max) |
| Seated Plane Height (mm) |
1.75(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline IC |
| Package Family Name |
SO |
| Jedec |
MS-012AB |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|

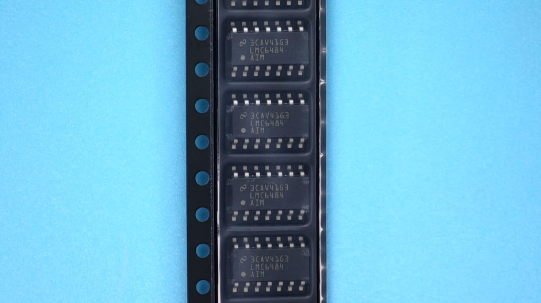

PACKAGING INFO
|
| Packaging Suffix |
X |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
| Reel Diameter (in) |
13 |
| Reel Width (mm) |
16.4 |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
16 |
| Component Orientation |
Q1 |
| Packaging Document |
Link to Datasheet |
|
|

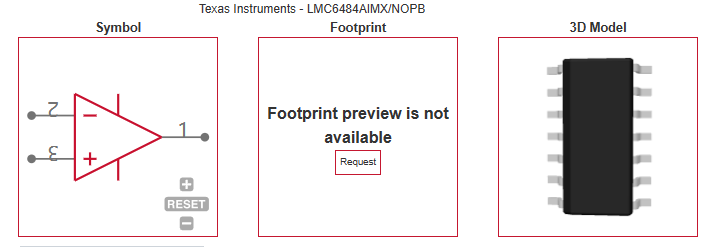

ECAD MODELS
|
|
|
| APPLICATIONS |
| • Data acquisition (DAQ) |
| • Currency counter |
| • Oscilloscope (DSO) |
| • Intra-DC interconnect (METRO) |
• Macro remote radio unit (RRU)
|
| • Multiparameter patient monitor |
| • Merchant telecom rectifiers |
| • Train control and management |
| • Process analytics (pH, gas, concentration, force,and humidity) |
| • Three phase UPS |
| |
