• Four Independent Outputs with >3A Peak, 1A Continuous Current Capability
|
• 1.3Ω Maximum ON Resistance Over Temperature
|
• True Instantaneous Power Limit for Each Switch
|
• High Survival Voltage (60 VDC, 80V Transient)
|
• Shorted Load (to Ground and Supply)Protection
|
• Overvoltage Shutdown at VCC > 35V
|
• LS TTL/CMOS Compatible Logic Inputs and Outputs
|
• <10 µA Supply Current in “Sleep” Mode
|
• −5V Output Clamp for Discharging Inductive Loads
|
• Two Direct-output Error Flags
|
|
| CATALOG |
LMD18400N/NOPB LIFECYCLE
|
LMD18400N/NOPB PARAMETRIC INFO
|
LMD18400N/NOPB PACKAGE INFO
|
LMD18400N/NOPB MANUFACTURING INFO
|
LMD18400N/NOPB PACKAGING INFO
|
LMD18400N/NOPB ECAD MODELS
|
LMD18400N/NOPB APPLICATIONS
|
|
LIFECYCLE
|
Obsolete
Dec 19,2018
|
|
PARAMETRIC INFO
|
| Category |
Quad High Side Driver |
| Minimum Operating Temperature (°C) |
-25 |
| Maximum Operating Temperature (°C) |
85 |
| Interface Type |
Serial |
| Maximum Operating Supply Voltage (V) |
28 |
| Minimum Operating Supply Voltage (V) |
7 |
| Maximum Supply Current (mA) |
15 |
|
|

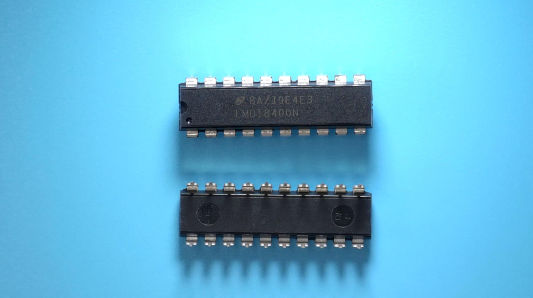

PACKAGE INFO
|
| Supplier Package |
PDIP |
| Basic Package Type |
Through Hole |
| Pin Count |
20 |
| Lead Shape |
Through Hole |
| PCB |
20 |
| Tab |
N/R |
| Pin Pitch (mm) |
2.54 |
| Package Length (mm) |
26.42(Max) |
| Package Width (mm) |
6.6 |
| Package Height (mm) |
3.3 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
5.08(Max) |
| Mounting |
Through Hole |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Plastic Dual In Line Package |
| Package Family Name |
DIP |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
40 |
| Number of Reflow Cycle |
4 |
| Standard |
IPC-1752 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/A |
| Wave Solder Time (Sec) |
N/A |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Quantity Of Packaging |
18 |
| Packaging Document |
Link to Datasheet |
|
|

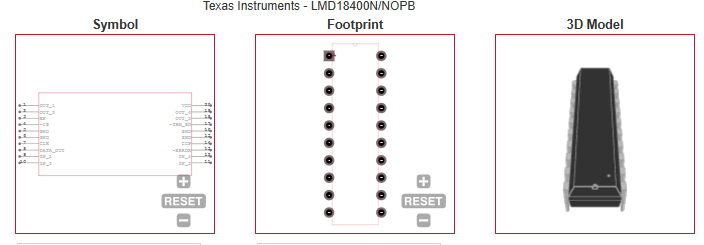

| ECAD MODELS |
 |
|
| APPLICATIONS |
| • Relay and Solenoid Drivers |
| • High Impedance Automotive Fuel Injector Drivers |
| • Lamp Drivers |
| • Power Supply Switching |
| • Motor Drivers |
| |
