• Ultra Low 28 µA Standby Current in ECO Mode
|
• Input Voltage Range 4 V to 60 V
|
• 1 µA Shutdown Current
|
• High Duty Cycle Operation Supported
|
• Output Current up to 600 mA
|
• 0.7 MHz and 2.1 MHz Switching Frequency
|
• Internal Compensation
|
• High Voltage Enable Input
|
• Internal Soft Start
|
• Over Current Protection
|
• Over Temperature Protection
|
• Small Overall Solution Size (SOT-6L Package)
|
• Create a Custom Design Using the LMR16006 with the WEBENCH Power Designer
|
|
| CATALOG |
LMR16006XDDCR COUNTRY OF ORIGIN
|
LMR16006XDDCR PARAMETER INFORMATION
|
LMR16006XDDCR PACKAGING INFORMATION
|
LMR16006XDDCR MANUFACTURING INFORMATION
|
LMR16006XDDCR TYPE OF PACKAGING
|
LMR16006XDDCR ECAD MODELS
|
LMR16006XDDCR APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Philippines
|
China
|
Malaysia
|
|
PARAMETER INFORMATION
|
| type |
Step Down |
| Number of Outputs |
1 |
| Minimum Input Voltage (V) |
4 |
| Maximum Input Voltage (V) |
60 |
| Output Voltage (V) |
0.8 to 55 |
| Maximum Output Current (A) |
0.6 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Switching Frequency (kHz) |
805 |
| Switching Regulator |
yes |
| Operating Supply Voltage (V) |
4 to 60 |
| Output Type |
Adjustable |
| Tradename |
SIMPLE SWITCHER® |
| Typical Quiescent Current (uA) |
28 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
165 |
| Typical Switch Current (A) |
1.2 |
|
|
PACKAGING INFORMATION
|
| Supplier Packaging |
TSOT-23 |
| Basic package types |
Lead-Frame SMT |
| Number of Pins |
6 |
| Pin shape |
Gull-wing |
| PCB |
6 |
| Ear piece |
N/R |
| Pin spacing (mm) |
0.95 |
| Package length (mm) |
3.05(Max) |
| Package width (mm) |
1.75(Max) |
| Package height (mm) |
1(Max) |
| Package diameter (mm) |
N/R |
| Package Overall Length (mm) |
3.05(Max) |
| Package Overall Width (mm) |
3.05(Max) |
| Package Overall Height (mm) |
1.1(Max) |
| Mounting surface height (mm) |
1.1(Max) |
| Install |
Surface Mount |
| Package weight (g) |
not applicable |
| Packaging materials |
Plastic |
| package instruction |
Thin Small Outline Transistor |
| Package Series Name |
SOT |
| JEDEC |
MO-193 |
| Package Outline |
Link to data sheet |
|
|
MANUFACTURING INFORMATION
|
| MSL |
1 |
| Maximum reflow temperature (°C) |
260 |
| Reflow time (seconds) |
30 |
| Reflow cycles |
3 |
| standard |
J-STD-020D |
| Reflow temperature source |
Link to data sheet |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Wave soldering temperature source |
Link to data sheet |
| Lead Finish(Plating) |
Au |
| Plating materials |
Pd over Ni |
| Terminal base material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|
TYPE OF PACKAGING
|
| Packaging Suffix |
R |
| Package |
Tape and Reel Packaging |
| Packing quantity |
3000 |
| Reel Diameter (in) |
7 |
| Reel Width (mm) |
8.4 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Component Orientation |
Q3 |
| Package Type File |
Link to data sheet |
|
|

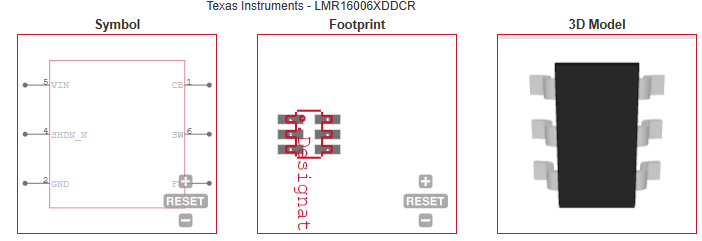

| ECAD MODELS |
|
|
| APPLICATIONS |
| • Industrial Distributed Power Systems |
| • Automotive |
| • Battery Powered Equipment |
| • Portable Handheld Instruments |
| • Portable Media Players |
| |
