| • Qualified for Automotive Applications |
• AEC-Q100 Qualified With the Following Results:
– Device Temperature Grade 1: –40°C to
+125°C Ambient Operating Temperature
– Device HBM ESD Classification Level H1C
– Device CDM ESD Classification Level C4A |
| • 4-V to 36-V Input Range
|
| • 2.5-A Continuous Output Current |
| • Integrated Synchronous Rectification |
| • Minimum Switch-On Time: 60 ns |
| • Internal Compensation for Ease of Use |
| • Fixed 2.1-MHz Switching Frequency
|
| • PFM and Forced PWM Mode Options at Light
Load |
| • Frequency Synchronization to External Clock |
| • 75-µA Quiescent Current at No Load for PFM
Option |
| • Power-Good Option |
| • Soft Start into a Prebiased Load |
| • High Duty-Cycle Operation Supported |
| • Output Short-Circuit Protection With Hiccup Mode |
| • 8-Pin HSOIC and 12-Pin WSON Wettable Flank
with PowerPAD™ Package Options
|
| • Create a Custom Design Using the LMR23625-Q1
With the WEBENCH® Power Designer |
|
| CATALOG |
| LMR23625CFQDDAQ1 COUNTRY OF ORIGIN |
| LMR23625CFQDDAQ1 PARAMETRIC INFO |
| LMR23625CFQDDAQ1 PACKAGE INFO |
| LMR23625CFQDDAQ1 MANUFACTURING INFO |
| LMR23625CFQDDAQ1 PACKAGING INFO |
| LMR23625CFQDDAQ1 ECAD MODELS |
| LMR23625CFQDDAQ1 FUNCTIONAL BLOCK DIAGRAM |
| LMR23625CFQDDAQ1 APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| China |
|
| PARAMETRIC INFO |
| Type |
Synchronous Step Down |
| Number of Outputs |
1 |
| Minimum Input Voltage (V) |
4 |
| Maximum Input Voltage (V) |
36 |
| Output Voltage (V) |
1 to 28 |
| Maximum Output Current (A) |
2.5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Supplier Temperature Grade |
Automotive |
| Switching Frequency (kHz) |
2415 |
| Switching Regulator |
Yes |
| Operating Supply Voltage (V) |
4 to 36 |
| Output Type |
Adjustable |
| Typical Quiescent Current (uA) |
75 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Typical Switch Current (A) |
4.8 |
|

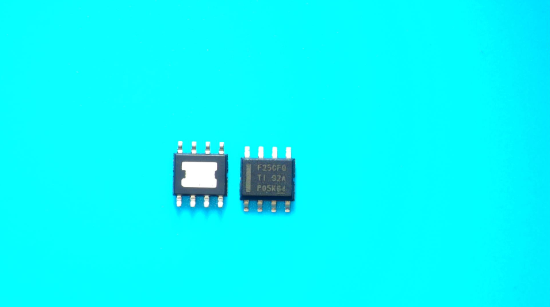

| PACKAGE INFO |
| Supplier Package |
HSOIC EP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
5(Max) |
| Package Width (mm) |
4(Max) |
| Package Height (mm) |
1.55(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5(Max) |
| Package Overall Width (mm) |
6.2(Max) |
| Package Overall Height (mm) |
1.7(Max) |
| Seated Plane Height (mm) |
1.7(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Family Name |
SO |
| Jedec |
MS-012-BA |
|
| MANUFACTURING INFO |
| MSL |
2 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
PdNiAg |
| Terminal Base Material |
Cu Alloy |
|
| PACKAGING INFO |
| Packaging |
Tube |
| Quantity Of Packaging |
75 |
| Packaging Document |
Link to Datasheet |
|

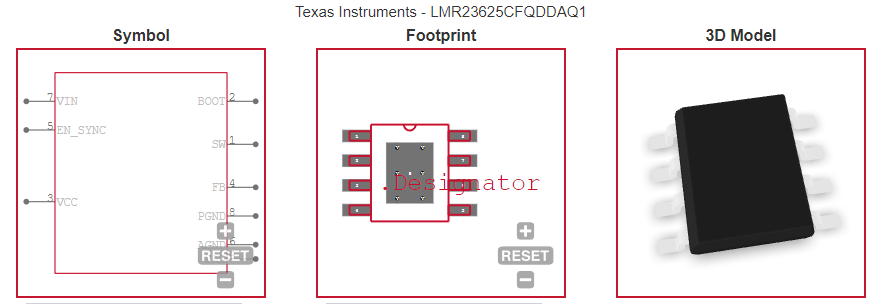

| ECAD MODELS |
 |
|

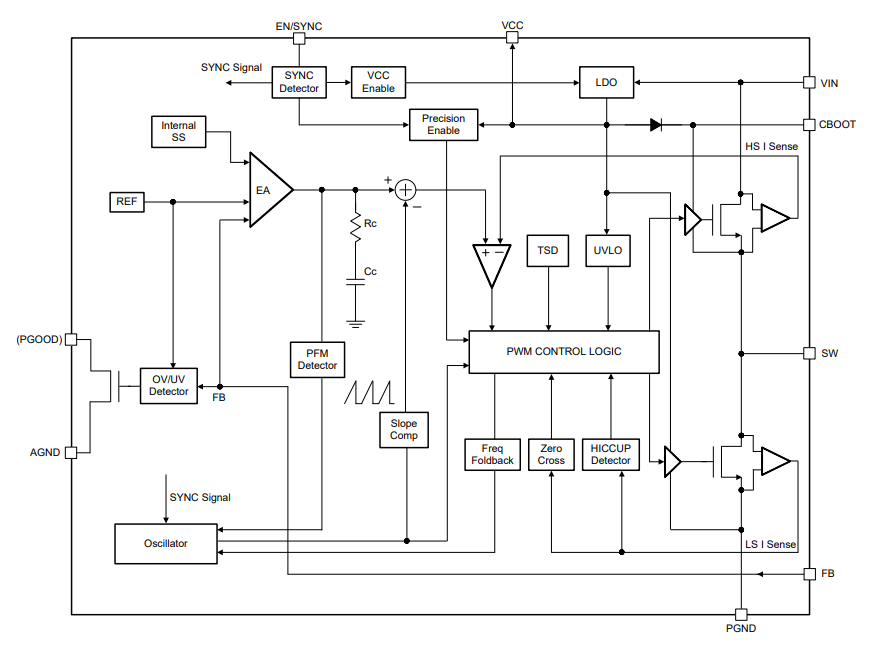

| FUNCTIONAL BLOCK DIAGRAM |
 |
|
| APPLICATIONS |
| • Automotive Infotainment: Clusters, Head Unit,
Heads-Up Display |
| • USB Charging |
| • General Off-Battery Power Applications |
|
