| • Guaranteed 2.7V and 5.5V performance |
| • Operating temperature range (-40°C to +125°C) |
| • Low supply current 40 µA/comparator Typ
|
| • Input Common Mode Voltage Range includes ground
|
| • Open Collector Output for Maximums Flexibility |
| • SOT353, SOT25, MSOP-8, SO-8: Available in “Green” Molding
Compound (No Br, Sb)
|
| • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) |
| • Halogen and Antimony Free. “Green” Device (Note 3) |
|
| CATALOG |
| LMV331W5-7 COUNTRY OF ORIGIN |
| LMV331W5-7 PARAMETRIC INFO |
| LMV331W5-7 PACKAGE INFO |
| LMV331W5-7 MANUFACTURING INFO |
| LMV331W5-7 PACKAGING INFO |
| LMV331W5-7 ECAD MODELS |
| LMV331W5-7 APPLICATIONS
|
|
| COUNTRY OF ORIGIN |
| China |
|
| PARAMETRIC INFO |
| Rail to Rail |
No |
| Manufacturer Type |
Low Voltage Comparator |
| Process Technology |
Bipolar |
| Number of Channels per Chip |
1 |
| Output Type |
Open Collector |
| Maximum Input Offset Voltage (mV) |
7@5V |
| Maximum Input Bias Current (uA) |
0.25@5V |
| Typical Voltage Gain (dB) |
93.98 |
| Typical Voltage Gain Range (dB) |
90 to 110 |
| Strobe Capability |
No |
| Typical Output Current (mA) |
84@5V |
| Maximum Propagation Delay Time (ns) |
600(Typ) |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Power Supply Type |
Single |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Minimum Single Supply Voltage (V) |
2.7 |
| Typical Single Supply Voltage (V) |
3 |
| Maximum Single Supply Voltage (V) |
5.5 |
| Maximum Supply Current (mA) |
0.12@5V |
|
| |
| PACKAGE INFO |
| Supplier Package |
SOT-25 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
5 |
| Lead Shape |
Gull-wing |
| PCB |
5 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.95 |
| Package Length (mm) |
3 |
| Package Width (mm) |
1.6 |
| Package Height (mm) |
1.1 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
3 |
| Package Overall Width (mm) |
2.8 |
| Package Overall Height (mm) |
1.15 |
| Seated Plane Height (mm) |
1.15 |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
N/A |
|
| |
| MANUFACTURING INFO |
| MSL |
N/A |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
| Number of Wave Cycles |
N/R |
|
| |

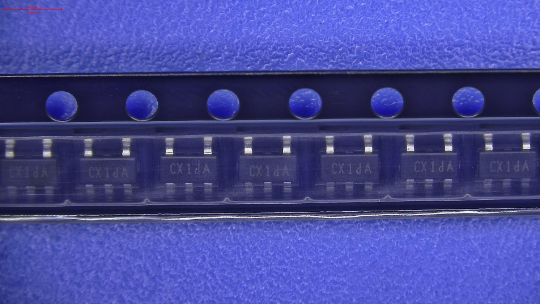

| PACKAGING INFO |
| Packaging |
Tape and Reel |
| Packaging Document |
Link to Datasheet |
|
| |

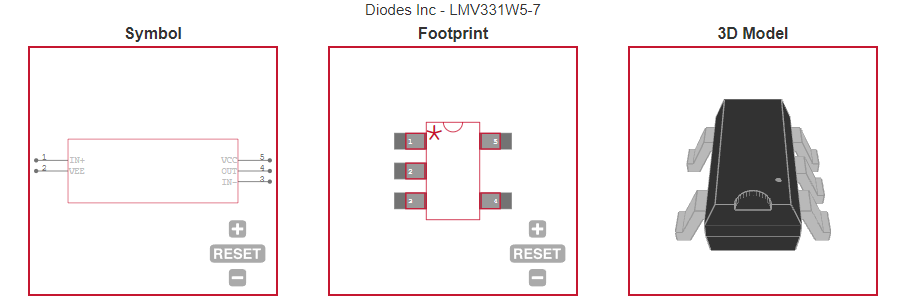

| ECAD MODELS |
 |
|
| APPLICATIONS
|
| • Mobile Communications |
| • Battery Powered Devices
|
| • Notebooks and PDA’s |
| • General Purpose Low-Voltage Applications |
| • General Purpose Portable Devices |
|
