• 2.7-V and 5-V Performance
|
• Rail-to-Rail Output Swing
|
• Input Bias Current:1 pA (Typical)
|
| • Input Offset Voltage: 0.25 mV (Typical) |
| • Low Supply Current: 100 μA (Typical) |
| • Low Shutdown Current: 45 pA (Typical) |
| • Gain Bandwidth of 1 MHz (Typical) |
| • Slew Rate: 1 V/μs (Typical) |
| • Turnon Time From Shutdown: 5 μs (Typical) |
| • Input Referred Voltage Noise (at 10 kHz):20 nV/√Hz |
| • ESD Protection Exceeds JESD 22– 2000-V Human-Body Model (HBM)– 750-V Charged-device model (CDM) |
| |
| CATALOG |
| LMV341IDCKR COUNTRY OF ORIGIN |
LMV341IDCKR PARAMETRIC INFO
|
LMV341IDCKR PACKAGE INFO
|
LMV341IDCKR MANUFACTURING INFO
|
LMV341IDCKR PACKAGING INFO
|
LMV341IDCKR EACD MODELS
|
| LMV341IDCKR APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| China |
| Thailand |
| Philippines |
|
PARAMETRIC INFO
|
| Manufacturer Type |
Low Voltage Amplifier |
| Type |
Low Voltage Amplifier |
| Rail to Rail |
Rail to Rail Output |
| Minimum Single Supply Voltage (V) |
2.5 |
| Number of Channels per Chip |
1 |
| Process Technology |
CMOS |
| Typical Single Supply Voltage (V) |
3|5 |
| Maximum Single Supply Voltage (V) |
5.5 |
| Output Type |
CMOS |
| Typical Gain Bandwidth Product (MHz) |
1 |
| Maximum Input Offset Voltage (mV) |
4@5V |
| Maximum Input Offset Current (uA) |
0.0000000066(Typ)@5V |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Maximum Input Bias Current (uA) |
0.0002@5V |
| Minimum CMRR (dB) |
56 |
| Maximum Supply Voltage Range (V) |
5.5 to 6 |
| Minimum CMRR Range (dB) |
50 to 60 |
| Typical Voltage Gain (dB) |
116 |
| Typical Slew Rate (V/us) |
1@5V |
| Typical Input Noise Voltage Density (nV/rtHz) |
39@5V |
| Typical Noninverting Input Current Noise Density (pA/rtHz) |
0.001@5V |
| Typical Input Bias Current (uA) |
0.000001@5V |
| Shut Down Support |
Yes |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Supplier Temperature Grade |
Extended Industrial |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Power Supply Type |
Single |
| Maximum Supply Current (mA) |
0.2@5V |
|
|
PACKAGE INFO
|
| Supplier Package |
HSOIC EP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
5(Max) |
| Package Width (mm) |
4(Max) |
| Package Height (mm) |
1.55(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5(Max) |
| Package Overall Width (mm) |
6.2(Max) |
| Package Overall Height (mm) |
1.7(Max) |
| Seated Plane Height (mm) |
1.7(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Family Name |
SO |
| Jedec |
MS-012-BA |
| Package Outline |
Link to Datasheet |
|
| |
MANUFACTURING INFO
|
| Manufacturer Type |
Low Voltage Amplifier |
| Type |
Low Voltage Amplifier |
| Rail to Rail |
Rail to Rail Output |
| Minimum Single Supply Voltage (V) |
2.5 |
| Number of Channels per Chip |
1 |
| Process Technology |
CMOS |
| Typical Single Supply Voltage (V) |
3|5 |
| Maximum Single Supply Voltage (V) |
5.5 |
| Output Type |
CMOS |
| Typical Gain Bandwidth Product (MHz) |
1 |
| Maximum Input Offset Voltage (mV) |
4@5V |
| Maximum Input Offset Current (uA) |
0.0000000066(Typ)@5V |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Maximum Input Bias Current (uA) |
0.0002@5V |
| Minimum CMRR (dB) |
56 |
| Maximum Supply Voltage Range (V) |
5.5 to 6 |
| Minimum CMRR Range (dB) |
50 to 60 |
| Typical Voltage Gain (dB) |
116 |
| Typical Slew Rate (V/us) |
1@5V |
| Typical Input Noise Voltage Density (nV/rtHz) |
39@5V |
| Typical Noninverting Input Current Noise Density (pA/rtHz) |
0.001@5V |
| Typical Input Bias Current (uA) |
0.000001@5V |
| Shut Down Support |
Yes |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Supplier Temperature Grade |
Extended Industrial |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Power Supply Type |
Single |
| Maximum Supply Current (mA) |
0.2@5V |
|
|

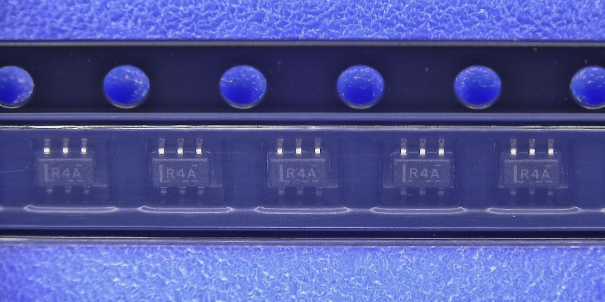

PACKAGING INFO
|
| Supplier Package |
SC-70 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
6 |
| Lead Shape |
Gull-wing |
| PCB |
6 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
2.15(Max) |
| Package Width (mm) |
1.4(Max) |
| Package Height (mm) |
1(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
2.15(Max) |
| Package Overall Width (mm) |
2.4(Max) |
| Package Overall Height (mm) |
1.1(Max) |
| Seated Plane Height (mm) |
1.1(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
MO-203AB |
| Package Outline |
Link to Datasheet |
|
|

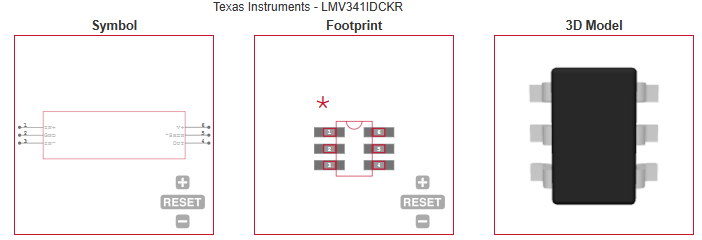

ECAD MODELS
|
|
|
| APPLICATIONS |
| • Cordless and Cellular Phones |
| • Consumer Electronics (Laptops, PDAs) |
| • Audio Preamplifiers for Voice |
| • Portable, Battery-Powered Electronic Equipment |
| • Supply-Current Monitoring |
| • Battery Monitoring |
| • Buffers |
| • Filters |
| • Drivers |
| |
