• AEC-Q100 qualified for automotive applications– Temperature grade 1: –40°C to +125°C, TA– Device HBM ESD classification level 2– Device CDM ESD classification level C6
|
• Low input offset voltage: ±1 mV
|
• Rail-to-rail output
|
• Unity-gain bandwidth: 1 MHz
|
• Low broadband noise: 30 nV/√ Hz
|
• Low input bias current: 10 pA
|
• Low quiescent current: 70 µA/Ch
|
• Unity-gain stable
|
• Internal RFI and EMI filter
|
• Operational at supply voltages as low as 2.5 V
|
• Easier to stabilize with higher capacitive load due to resistive open-loop output impedance
|
• Extended temperature range: –40°C to 125°C
|
|
| CATALOG |
LMV358AQDGKRQ1 COUNTRY OF ORIGIN
|
LMV358AQDGKRQ1 PARAMETRIC INFO
|
LMV358AQDGKRQ1 PACKAGE INFO
|
LMV358AQDGKRQ1 MANUFACTURING INFO
|
LMV358AQDGKRQ1 PACKAGING INFO
|
LMV358AQDGKRQ1 ECAD MODELS
|
LMV358AQDGKRQ1 APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
China
|
Thailand
|
|
PARAMETRIC INFO
|
| Manufacturer Type |
Low Voltage Amplifier |
| Type |
Low Voltage Amplifier |
| Rail to Rail |
Rail to Rail Output |
| Minimum Single Supply Voltage (V) |
2.5 |
| Number of Channels per Chip |
2 |
| Minimum PSRR (dB) |
78 |
| Typical Single Supply Voltage (V) |
3|5 |
| Maximum Single Supply Voltage (V) |
5.5 |
| Minimum Dual Supply Voltage (V) |
±1.25 |
| Typical Gain Bandwidth Product (MHz) |
1 |
| Maximum Input Offset Voltage (mV) |
4@5V |
| Maximum Dual Supply Voltage (V) |
±2.75 |
| Maximum Operating Supply Voltage (V) |
±2.75|5.5 |
| Minimum CMRR (dB) |
63 |
| Maximum Supply Voltage Range (V) |
5.5 to 6 |
| Minimum CMRR Range (dB) |
60 to 65 |
| Typical Voltage Gain (dB) |
128 |
| Typical Slew Rate (V/us) |
1.7@5V |
| Typical Settling Time (ns) |
4000 |
| Typical Input Noise Voltage Density (nV/rtHz) |
33@5V |
| Typical Noninverting Input Current Noise Density (pA/rtHz) |
0.025@5V |
| Shut Down Support |
No |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Supplier Temperature Grade |
Extended |
| Power Supply Type |
Single|Dual |
|
|
PACKAGE INFO
|
| Supplier Package |
VSSOP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
3.1(Max) |
| Package Width (mm) |
3.1(Max) |
| Package Height (mm) |
0.95(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
3.1(Max) |
| Package Overall Width (mm) |
5.05(Max) |
| Package Overall Height (mm) |
1.1(Max) |
| Seated Plane Height (mm) |
1.1(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Very Thin Shrink Small Outline Package |
| Package Family Name |
SO |
| Jedec |
MO-187 |
| Package Outline |
Link to Datasheet |
| Maximum PACKAGE_DIMENSION_H |
0.95 |
| Minimum PACKAGE_DIMENSION_H |
N/A |
| Maximum PACKAGE_DIMENSION_L |
3.1 |
| Minimum PACKAGE_DIMENSION_L |
2.9 |
| Maximum PACKAGE_DIMENSION_W |
3.1 |
| Minimum PACKAGE_DIMENSION_W |
2.9 |
| Maximum Diameter |
N/R |
| Minimum Diameter |
N/R |
| Maximum Seated_Plane_Height |
1.1 |
| Minimum Seated_Plane_Height |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
|
|
PACKAGING INFO
|
|
|
|

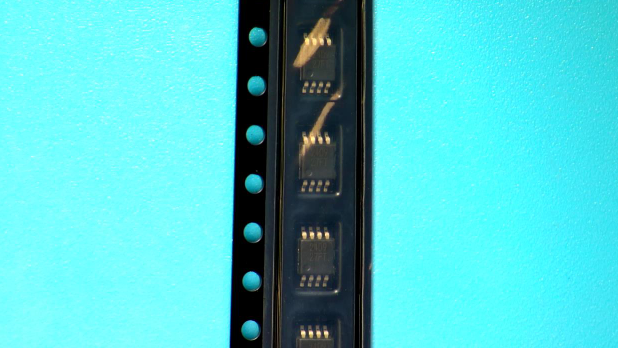

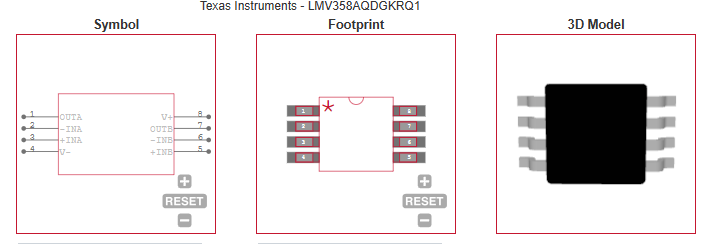

| ECAD MODELS |
|
|
| APPLICATIONS |
• Optimized for AEC-Q100 grade 1 applications
|
• Infotainment and cluster
|
• Passive safety
|
• Body electronics and lighting
|
• HEV/EV inverter and motor control
|
• On-board (OBC) and wireless charger
|
• Powertrain current sensor
|
• Advanced driver assistance systems (ADAS)
|
| • Single-supply, low-side, unidirectional currentsensing circuit |
|
