• Integrated Shielded Inductor
|
• Simple PCB Layout
|
• Flexible Start-Up Sequencing Using External Soft-Start and Precision Enable
|
• Protection Against Inrush Currents and Faults Such as Input UVLO and Output Short Circuit
|
• –40°C to 125°C Junction Temperature Range
|
| • Single Exposed Pad and Standard Pinout for Easy Mounting and Manufacturing
|
| • Fast Transient Response for Powering FPGAs and ASICs |
| • Low Output Voltage Ripple |
| • Fully Enabled for WEBENCH® Power Designer |
|
| CATALOG |
LMZ14201TZ-ADJ/NOPB COUNTRY OF ORIGIN
|
LMZ14201TZ-ADJ/NOPB PARAMETRIC INFO
|
LMZ14201TZ-ADJ/NOPB PACKAGE INFO
|
LMZ14201TZ-ADJ/NOPB MANUFACTURING INFO
|
LMZ14201TZ-ADJ/NOPB PACKAGING INFO
|
LMZ14201TZ-ADJ/NOPB ECAD MODELS
|
LMZ14201TZ-ADJ/NOPB APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
| Malaysia |
|
PARAMETRIC INFO
|
| Isolation |
Non-Isolated |
| Type |
Step Down |
| Number of Outputs |
1 |
| Output Voltage (V) |
0.8 to 6 |
| Maximum Output Power (W) |
6 |
| Maximum Output Current (A) |
1 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Switching Regulator |
Yes |
| Minimum Input Voltage (V) |
6 |
| Maximum Input Voltage (V) |
42 |
| Output Type |
Adjustable |
| Efficiency (%) |
92(Typ) |
| Load Regulation |
1.5mV/A(Typ) |
| Line Regulation |
0.01%(Typ) |
| Switching Frequency (kHz) |
1000 |
| Typical Standby Current (mA) |
0.025 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| On/Off Logic |
Positive |
|
|
PACKAGE INFO
|
| Supplier Package |
TO-PMOD EP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
7 |
| Lead Shape |
Gull-wing |
| PCB |
7 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
10.16 |
| Package Width (mm) |
9.85 |
| Package Height (mm) |
4.57 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
4.82(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
N/A |
| Package Family Name |
TO-PMOD |
| Jedec |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
245 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu |
| Number of Wave Cycles |
N/R |
|
|

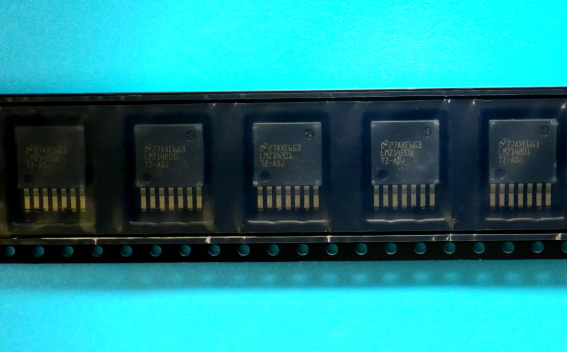

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
250 |
| Reel Diameter (in) |
13 |
| Reel Width (mm) |
24.4 |
| Tape Pitch (mm) |
16 |
| Tape Width (mm) |
24 |
| Component Orientation |
Q2 |
| Packaging Document |
Link to Datasheet |
|
|

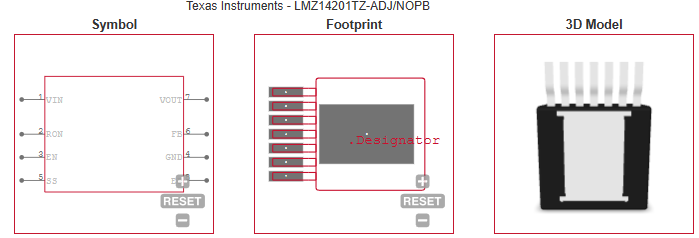

ECAD MODELS
|
|
|
APPLICATIONS
|
• Point of Load Conversions From 12-V and 24-V
Input Rail
|
| • Time-Critical Projects
|
• Space Constrained and High Thermal
Requirement Applications
|
• Negative Output Voltage Applications (See AN-2027) SNVA425
|
|
| |
| |
