• Input Voltage Range: 2.3 V to 30 V
|
• 5-V, 3-V, and 3.3-V Output Voltage Versions
Available
|
• High Accuracy Output Voltage
|
• Ensured 100-mA Output Current
|
• Extremely Low Quiescent Current
|
| • Low Dropout Voltage |
| • Extremely Tight Load and Line Regulation |
| • Very Low Temperature Coefficient |
|
| CATALOG |
LP2951ACMX/NOPB COUNTRY OF ORIGIN
|
LP2951ACMX/NOPB PARAMETRIC INFO
|
LP2951ACMX/NOPB PACKAGE INFO
|
LP2951ACMX/NOPB MANUFACTURING INFO
|
LP2951ACMX/NOPB PACKAGING INFO
|
LP2951ACMX/NOPB ECAD MODELS
|
LP2951ACMX/NOPB APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
Philippines
|
|
PARAMETRIC INFO
|
| Type |
LDO |
| Number of Outputs |
1 |
| Maximum Output Current (A) |
0.1 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Output Voltage Range (V) |
<1.8|1.8 to 10|10 to 20|20 to 50 |
| Output Type |
Adjustable |
| Junction to Ambient |
117.7°C/W |
| Junction to Case |
63.7°C/W |
| Polarity |
Positive |
| Special Features |
Current Limit|Thermal Protection |
| Load Regulation |
0.1% |
| Line Regulation |
0.1% |
| Maximum Dropout Voltage @ Current (V) |
0.08@100uA|0.45@100mA |
| Minimum Input Voltage (V) |
2.3 |
| Maximum Input Voltage (V) |
30 |
| Output Voltage (V) |
1.24 to 29 |
| Typical Quiescent Current (mA) |
0.075 |
| Typical Dropout Voltage @ Current (V) |
0.05@100uA|0.38@100mA |
| Reference Voltage (V) |
1.25 |
| Accuracy (%) |
±0.5(Typ) |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Typical Ground Current @ Full Load (mA) |
8 |
| Typical PSRR (dB) |
51 |
| Typical Output Capacitance (uF) |
1(Min) |
| Typical Output Noise Voltage (uVrms) |
430 |
| Output Capacitor Type |
Ceramic |
|
|
PACKAGE INFO
|
| Supplier Package |
SOIC |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
5(Max) |
| Package Width (mm) |
3.98(Max) |
| Package Height (mm) |
1.5(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5(Max) |
| Package Overall Width (mm) |
6.19(Max) |
| Package Overall Height (mm) |
1.75(Max) |
| Seated Plane Height (mm) |
1.75(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline IC |
| Package Family Name |
SO |
| Jedec |
MS-012AA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|

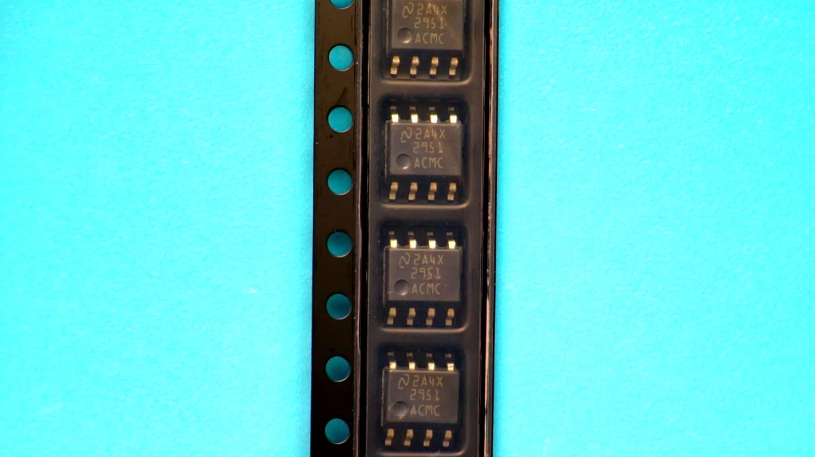

PACKAGING INFO
|
| Packaging Suffix |
X |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
| Reel Diameter (in) |
13 |
| Reel Width (mm) |
12.4 |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
12 |
| Component Orientation |
Q1 |
| Packaging Document |
Link to Datasheet |
|
|

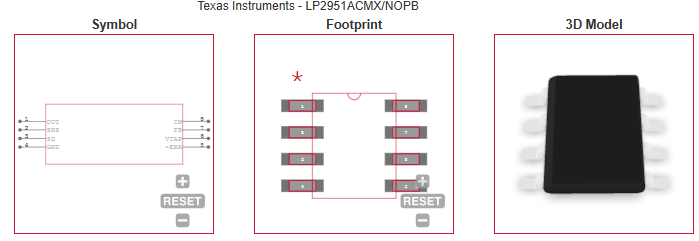

ECAD MODELS
|
|
|
APPLICATIONS
|
• High-Efficiency Linear Regulator
|
| • Regulator with Undervoltage Shutdown |
• Low Dropout Battery-powered Regulator
|
• Snap-ON/Snap-OFF Regulator
|
|
| |
