• Four Independently Programmable LED OutputsWith 8-Bit Current Setting (From 0 mA to 25.5 mAWith 100-μA Steps) and 8-Bit PWM Control
|
• Typical LED Output Saturation Voltage 60 mV andCurrent Matching 1%
|
• Flexible PWM Control for LED Outputs
|
• Automatic Power-Save Mode With External Clock
|
• Three Program Execution Engines With Flexible Instruction Set
|
|
| CATALOG |
LP5562TME/NOPB COUNTRY OF ORIGIN
|
LP5562TME/NOPB PARAMETRIC INFO
|
LP5562TME/NOPB PACKAGE INFO
|
LP5562TME/NOPB MANUFACTURING INFO
|
LP5562TME/NOPB PACKAGING INFO
|
LP5562TME/NOPB ECAD MODELS
|
LP5562TME/NOPB APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
|
PARAMETRIC INFO
|
| Number of Segments |
4 |
| Minimum Operating Supply Voltage (V) |
2.7 |
| Typical Operating Supply Voltage (V) |
3.3|5 |
| Maximum Operating Supply Voltage (V) |
5.5 |
| Maximum Supply Current (uA) |
1000(Typ) |
| Output Voltage (V) |
2.7 to 5.5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Operating Supply Voltage (V) |
2.7 to 5.5 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-65 |
|
|
PACKAGE INFO
|
| Supplier Package |
DSBGA |
| Basic Package Type |
Ball Grid Array |
| Pin Count |
12 |
| Lead Shape |
Ball |
| PCB |
12 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.4 |
| Package Length (mm) |
1.65(Max) |
| Package Width (mm) |
1.25(Max) |
| Package Height (mm) |
0.48(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
0.68(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Die Size Ball Grid Array |
| Package Family Name |
BGA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
SnAgCu |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
|
PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
250 |
| Packaging Document |
Link to Datasheet |
|
|

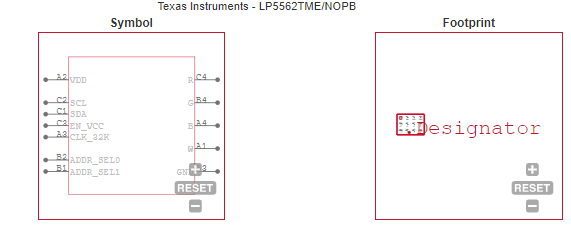

ECAD MODELS
|
|
|
| APPLICATIONS |
| • Fun Lights |
| • Indicator Lights |
| • Keypad RGB Backlighting and Phone Cosmetics |
| |
