| • Pressure sensor with water resistant
package |
| • 260 to 1260 hPa absolute pressure range |
| • Current consumption down to 3 µA |
| • High overpressure capability: 20x full scale |
| • Embedded temperature compensation |
| • 24-bit pressure data output |
| • 16-bit temperature data output |
| • ODR from 1 Hz to 75 Hz |
| • SPI and I²C interfaces |
| • Embedded FIFO |
| • Interrupt functions: Data Ready, FIFO flags,
pressure thresholds |
| • Supply voltage: 1.7 to 3.6 |
| • ECOPACK®
lead-free compliant |
|
| CATALOG |
| LPS35HWTR COUNTRY OF ORIGIN |
| LPS35HWTR PARAMETRIC INFO |
| LPS35HWTR PACKAGE INFO |
| LPS35HWTR MANUFACTURING INFO |
| LPS35HWTR PACKAGING INFO |

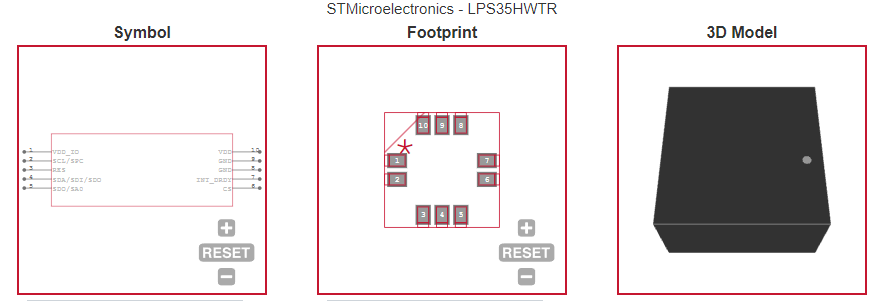

| LPS35HWTR ECAD MODELS |

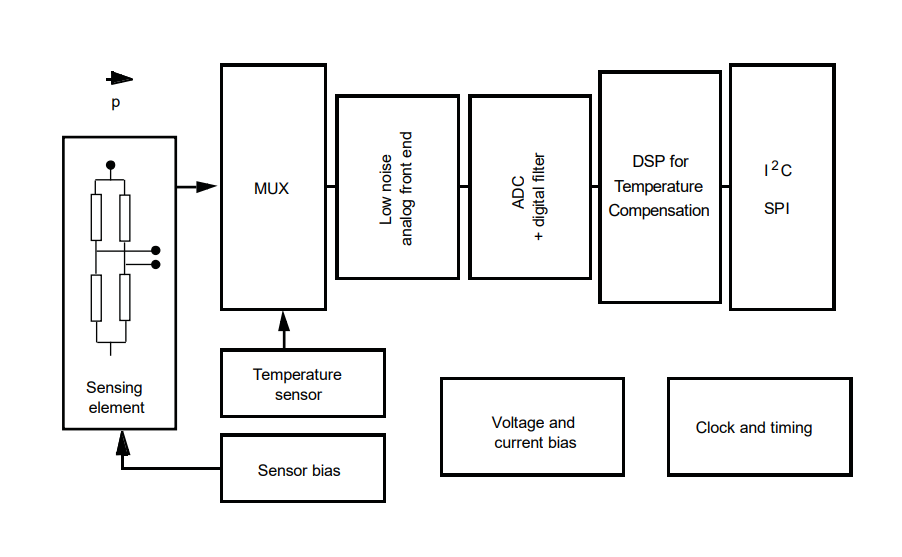

| LPS35HWTR FUNCTONAL BLOCK DIAGRAM |
| LPS35HWTR APPLICATIONS
|
|
| COUNTRY OF ORIGIN |
| Malta |
|
| PARAMETRIC INFO |
| Device Pressure Type |
Absolute |
| Equivalent Overload Pressure Range (psi) |
100 to 500 |
| Maximum Operating Supply Voltage (V) |
3.6 |
| Maximum Operating Temperature (°C) |
85 |
| Maximum Overload Pressure |
2000kPa |
| Maximum Storage Temperature (°C) |
125 |
| Minimum Operating Supply Voltage (V) |
1.7 |
| Minimum Operating Temperature (°C) |
-40 |
| Minimum Storage Temperature (°C) |
-40 |
| Operating Pressure Range |
26kPa to 126kPa |
| Typical Operating Supply Voltage (V) |
1.8|2.5|3.3 |
| Operating Supply Voltage (V) |
1.8|2.5|3.3 |
|
| PACKAGE INFO |
| Supplier Package |
CCLGA |
| Pin Count |
10 |
| PCB |
10 |
| Tab |
N/R |
| Package Length (mm) |
3.5 |
| Package Width (mm) |
3.5 |
| Package Height (mm) |
1.85 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1.85 |
| Mounting |
Surface Mount |
| Package Material |
Ceramic |
| Package Outline |
Link to Datasheet |
|
| MANUFACTURING INFO |
| Shelf Life Period |
2 Years |
|

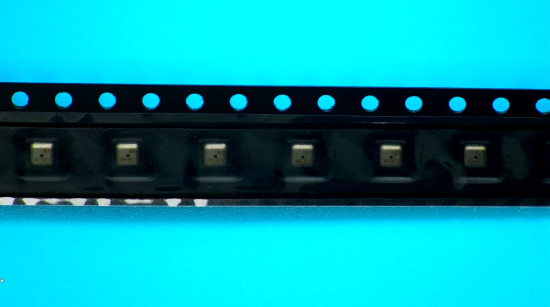

| PACKAGING INFO |
| Packaging Suffix |
TR |
| Packaging |
Tape and Reel |
|
| ECAD MODELS |
 |
|
| FUNCTONAL BLOCK DIAGRAM
|
 |
|
| APPLICATIONS
|
| • Wearable devices |
| • Altimeter and barometer for portable devices |
| • GPS applications |
| • Weather station equipment |
|
