| LQH43CN150K03L COUNTRY OF ORIGIN |
LQH43CN150K03L PARAMETRIC INFO
|
LQH43CN150K03L PACKAGE INFO
|
LQH43CN150K03L MANUFACTURING INFO
|
LQH43CN150K03L PACKAGING INFO
|
|
| COUNTRY OF ORIGIN |
| Japan |
|
PARAMETRIC INFO
|
| Type |
Power Chip |
| Technology |
Wirewound |
| Protection Style |
Unshielded |
| Core Material |
Ferrite |
| Inductance (H) |
15u |
| Tolerance |
10% |
| Inductance Test Frequency (Hz) |
1M |
| Maximum DC Current (A) |
0.57 |
| Maximum DC Resistance (Ohm) |
0.32 |
| Minimum Self Resonant Frequency (Hz) |
20M |
| Maximum Operating Temperature (°C) |
85 |
| Minimum Operating Temperature (°C) |
-40 |
| Operating Temperature (°C) |
-40 to 85 |
|
|
PACKAGE INFO
|
| Case Size |
1812 |
| Product Length (mm) |
4.8 |
| Product Depth (mm) |
3.4 |
| Product Height (mm) |
2.8 |
| Product Diameter (mm) |
N/R |
| Number of Terminals |
2 |
| Product Weight (g) |
0.13 |
| Mounting |
Surface Mount |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
10 |
| Number of Reflow Cycle |
1 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
265 |
| Wave Solder Time (Sec) |
5 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
SnCu |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
| Number of Wave Cycles |
1 |
|
|

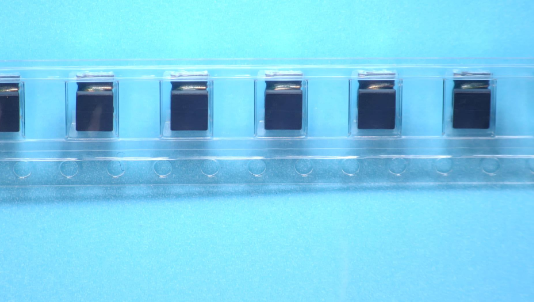

PACKAGING INFO
|
| Packaging Suffix |
L |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
500 |
| Reel Diameter (in) |
7.09 |
| Packaging Document |
Link to Datasheet |
| Tape Type |
Embossed |
|
