| LQM21FN220N00L COUNTRY OF ORIGIN |
| LQM21FN220N00L LIFE CYCLE |
LQM21FN220N00L PARAMETRIC INFO
|
LQM21FN220N00L PACKAGE INFO
|
LQM21FN220N00L MANUFACTURING INFO
|
LQM21FN220N00L PACKAGING INFO
|
| |
| COUNTRY OF ORIGIN |
| Japan |
| |
| LIFE CYCLE |
| LTB Mar 31, 2025 |
| |
PARAMETRIC INFO
|
| type |
Power Chip |
| Technology |
Multi-Layer |
| Protection Style |
Shielded |
| Core Material |
Ferrite |
| Inductance(H) |
22u |
| Tolerance |
30% |
| Inductance Test Frequency (Hz) |
1M |
| Maximum DC Current (A) |
0.013 |
| Maximum Saturation Current (A) |
0.013 |
| Maximum DC Resistance (Ohm) |
0.455 |
| Minimum Self Resonant Frequency (Hz) |
15M |
| Maximum Operating Temperature (°C) |
85 |
| Minimum Operating Temperature (°C) |
-40 |
| Operating Temperature (°C) |
-40 to 85 |
|
| |
PACKAGE INFO
|
| Case Size |
0805 |
| Product Length (mm) |
2.2 |
| Product Depth (mm) |
1.45 |
| Product Height (mm) |
1.45 |
| Product Diameter (mm) |
N/R |
| Number of Terminals |
2 |
| Product Weight (g) |
0.016 |
| Install |
Surface Mount |
|
| |
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum reflow temperature (°C) |
260 |
| Reflow soldering time (seconds) |
10 |
| Number of reflow cycles |
2 |
| Reflow temperature source |
Link to datasheet |
| Maximum wave soldering temperature (°C) |
265 |
| Wave soldering time (seconds) |
5 |
| Wave soldering temperature source |
Link to datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Plating materials |
Ni |
| Terminal Base Material |
not applicable |
| Number of Wave Cycles |
2 |
|
| |

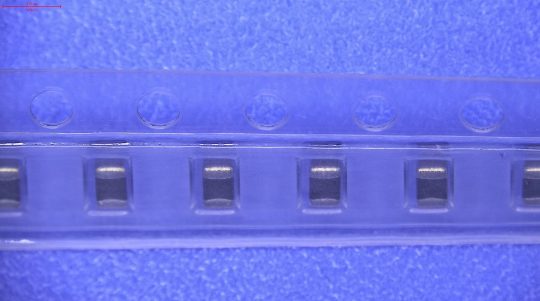

PACKAGING INFO
|
| Packaging Suffix |
L |
| Package |
Tape and reel packaging |
| packaging type file |
Link to datasheet |
| Tape Type |
Embossed |
|
