| LQW15AN1N5B00D COUNTRY OF ORIGIN |
LQW15AN1N5B00D PARAMETRIC INFO
|
LQW15AN1N5B00D PACKAGE INFO
|
LQW15AN1N5B00D MANUFACTURING INFO
|
| LQW15AN1N5B00D PACKAGING INFO
|
|
COUNTRY OF ORIGIN
|
China
|
Japan
|
Malaysia
|
United Kingdom of Great Britain and Northern Ireland
|
Viet Nam
|
|
PARAMETRIC INFO
|
| Type |
RF Chip |
| Technology |
Wirewound |
| Protection Style |
Unshielded |
| Core Material |
Non Magnetic |
| Inductance (H) |
0.0015u |
| Tolerance |
0.1nH |
| Inductance Test Frequency (Hz) |
100M |
| Maximum DC Current (A) |
1 |
| Typical Temperature Rise (°C) |
20 |
| Maximum DC Resistance (Ohm) |
0.03 |
| Minimum Quality Factor |
10 |
| Quality Test Frequency (Hz) |
250M |
| Minimum Self Resonant Frequency (Hz) |
18000M |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Temperature (°C) |
-55 |
| Operating Temperature (°C) |
-55 to 125 |
| Polarity |
No |
| Maximum Terminal Width (mm) |
0.3 |
| Maximum Storage Temperature (°C) |
125 |
| Minimum Storage Temperature (°C) |
-55 |
|
|
PACKAGE INFO
|
| Case Size |
0402 |
| Product Length (mm) |
1.1 |
| Product Depth (mm) |
0.7 |
| Product Height (mm) |
0.6 |
| Product Diameter (mm) |
N/R |
| Number of Terminals |
2 |
| Product Weight (g) |
0.0008 |
| Package Shape |
Rectangular |
| Terminal Pitch (mm) |
N/R |
| Mounting |
Surface Mount |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
10 |
| Number of Reflow Cycle |
2 |
| Standard |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ni |
| Terminal Base Material |
N/A |
| Number of Wave Cycles |
N/R |
|
|

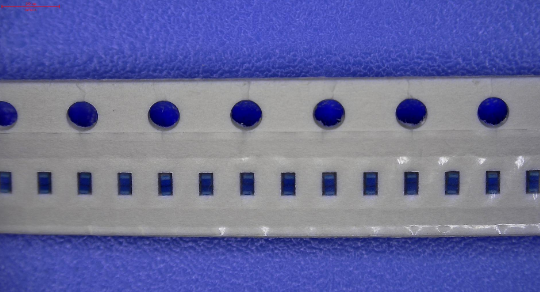

PACKAGING INFO
|
| Packaging Suffix |
D |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
10000 |
| Reel Diameter (in) |
7.09 |
| Packaging Document |
Link to Datasheet |
| Tape Material |
Paper |
|
|
