• Low Quiescent Current:
20µA in Active Mode
<1µA in Shutdown Mode
|
• Operates with VIN as Low as 1V
|
• Low VCESAT Switch: 250mV at 300mA
|
• Uses Small Surface Mount Components
|
• High Output Voltage: Up to –34V
|
• Tiny 5-Lead SOT-23 Package
|
|
| CATALOG |
| LT1617ES5#TRPBF COUNTRY OF ORIGIN |
LT1617ES5#TRPBF PARAMETRIC INFO
|
LT1617ES5#TRPBF PACKAGE INFO
|
LT1617ES5#TRPBF MANUFACTURING INFO
|
LT1617ES5#TRPBF PACKAGING INFO
|
LT1617ES5#TRPBF ECAD MODELS
|
LT1617ES5#TRPBF APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
United States of America
|
|
PARAMETRIC INFO
|
| Type |
Inverting |
| Number of Outputs |
1 |
| Minimum Input Voltage (V) |
1.2 |
| Maximum Input Voltage (V) |
15 |
| Output Voltage (V) |
-34(Max) |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Supplier Temperature Grade |
Extended Industrial |
| Switching Regulator |
Yes |
| Operating Supply Voltage (V) |
1.2 to 15 |
| Output Type |
Adjustable |
| Line Regulation |
0.1%/V |
| Typical Quiescent Current (uA) |
20 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Typical Switch Current (A) |
0.35 |
|
|
PACKAGE INFO
|
| Supplier Package |
TSOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
5 |
| Lead Shape |
Gull-wing |
| PCB |
5 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.95 |
| Package Length (mm) |
2.9 |
| Package Width (mm) |
1.75(Max) |
| Package Height (mm) |
0.9(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
2.9 |
| Package Overall Width (mm) |
2.8 |
| Package Overall Height (mm) |
1(Max) |
| Seated Plane Height (mm) |
1(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Thin Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
MO-193AB |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ag |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
2 |
|
|

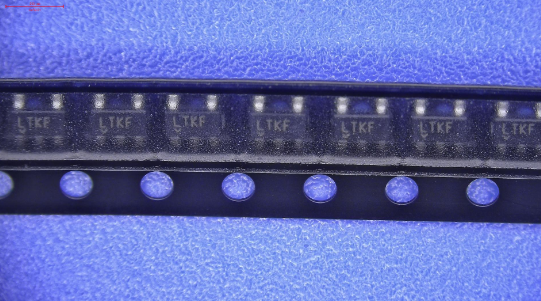

PACKAGING INFO
|
| Packaging Suffix |
TR |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
| Reel Diameter (in) |
7 |
| Reel Width (mm) |
8.4 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Feed Hole Pitch (mm) |
4 |
| Hole Center to Component Center (mm) |
2 |
| Component Orientation |
3 Pin At Sprocket Hole |
| Packaging Document |
Link to Datasheet |
| Tape Type |
Embossed |
|
|

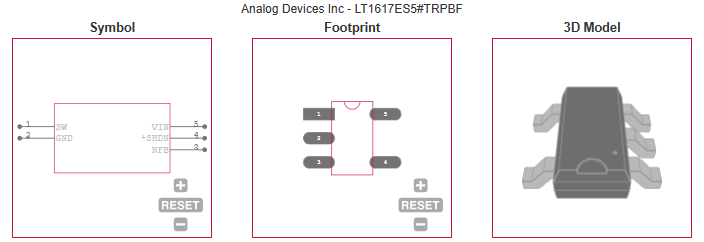

ECAD MODELS
|
|
|
APPLICATIONS
|
• LCD Bias
|
• Handheld Computers
|
• Battery Backup
|
• Digital Cameras
|
|
