• Low Noise: 20µVRMS (10Hz to 100kHz)
|
• Output Current: 500mA
|
• Low Quiescent Current: 30µA
|
• Wide Input Voltage Range: 1.8V to 20V
|
• Low Dropout Voltage: 300mV
|
• Very Low Shutdown Current: < 1µA
|
• No Protection Diodes Needed
|
• Fixed Output Voltages: 1.5V, 1.8V, 2.5V, 3V, 3.3V, 5V
|
|
| CATALOG |

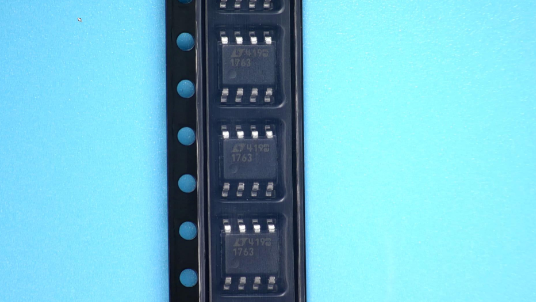

LT1763CS8#TRPBF COUNTRY OF ORIGIN
|
LT1763CS8#TRPBF PARAMETRIC INFO
|
LT1763CS8#TRPBF PACKAGE INFO
|
LT1763CS8#TRPBF Manufacturing Info
|
LT1763CS8#TRPBF Packaging Info
|
LT1763CS8#TRPBF ECAD Models
|
LT1763CS8#TRPBF Applications
|
|
COUNTRY OF ORIGIN
|
Philippines
|
Taiwan (Province of China)
|
Thailand
|
Malaysia
|
|
PARAMETRIC INFO
|
| Type |
LDO |
| Number of Outputs |
1 |
| Maximum Output Current (A) |
0.5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Regulation Condition Change In Load |
499mA |
| Regulation Condition Change In Line |
18V |
| Output Type |
Adjustable |
| Output Voltage Range (V) |
<1.8|1.8 to 10|10 to 20|20 to 50 |
| Junction to Ambient |
70°C/W |
| Junction to Case |
35°C/W |
| Polarity |
Positive |
| Special Features |
Current Limit|Reverse Battery Protection|Reverse Current Protection|Shutdown|Thermal Protection |
| Load Regulation |
6mV |
| Line Regulation |
5mV |
| Maximum Dropout Voltage @ Current (V) |
0.19@10mA|0.22@50mA|0.24@100mA|0.35@500mA |
| Minimum Input Voltage (V) |
1.8 |
| Maximum Input Voltage (V) |
20 |
| Output Voltage (V) |
1.22 to 20 |
| Typical Quiescent Current (mA) |
0.03 |
| Typical Dropout Voltage @ Current (V) |
0.13@10mA|0.17@50mA|0.2@100mA|0.3@500mA |
| Reference Voltage (V) |
1.22 |
| Accuracy (%) |
±1.5(Typ) |
| Supplier Temperature Grade |
Commercial |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Typical Ground Current @ Full Load (mA) |
11 |
| Typical PSRR (dB) |
65 |
| Typical Output Capacitance (uF) |
3.3 |
| Typical Output Noise Voltage (uVrms) |
20 |
| Output Capacitor Type |
Ceramic|Tantalum|Aluminum |
|
|
PACKAGE INFO
|
| Supplier Package |
SOIC N |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
5(Max) |
| Package Width (mm) |
3.99(Max) |
| Package Height (mm) |
1.5(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5(Max) |
| Package Overall Width (mm) |
6.2(Max) |
| Package Overall Height (mm) |
1.75(Max) |
| Seated Plane Height (mm) |
1.75(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline IC Narrow Body |
| Package Family Name |
SO |
| Jedec |
MS-012AA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ag |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
2 |
|
|
PACKAGING INFO
|
| Packaging Suffix |
TR |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
| Reel Diameter (in) |
13 |
| Reel Width (mm) |
12.4 |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
12 |
| Feed Hole Pitch (mm) |
4 |
| Hole Center to Component Center (mm) |
2 |
| Component Orientation |
Q1 |
| Packaging Document |
Link to Datasheet |
| Tape Type |
Embossed |
|
|
ECAD MODELS
|
|
|
APPLICATIONS
|
• Cellular Phones
|
• Battery-Powered Systems
|
• Noise-Sensitive Instrumentation Systems
|
| |
