• 8V to 48V Power Supply Range
|
• Protected from –15V to 60V Supply Transients
|
• Short-Circuit Protected
|
• Automatic Restart Timer
|
• Open-Collector Fault Flag
|
• Fully Enhances N-Channel MOSFET Switches
|
• Programmable Current Limit, Delay Time and
Autorestart Period
|
• Voltage Limited Gate Drive
|
• Defaults to Off State with Open Input
|
|
| CATALOG |
LT1910ES8#TRPBF COUNTRY OF ORIGIN
|
LT1910ES8#TRPBF PARAMETRIC INFO
|
LT1910ES8#TRPBF PACKAGE INFO
|
LT1910ES8#TRPBF MANUFACTURING INFO
|

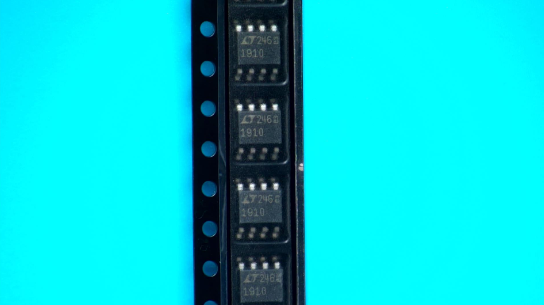

LT1910ES8#TRPBF PACKAGING INFO
|
LT1910ES8#TRPBF ECAD MODELS
|
LT1910ES8#TRPBF APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
United States of America
|
|
PARAMETRIC INFO
|
| Driver Type |
High Side |
| Number of Drivers |
1 |
| Driver Configuration |
Non-Inverting |
| Input Logic Compatibility |
CMOS|TTL |
| Maximum Operating Supply Voltage (V) |
48 |
| Type |
MOSFET |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Maximum Turn-Off Delay Time (ns) |
100000 |
| Maximum Turn-On Delay Time (ns) |
400000 |
| Number of Outputs |
1 |
| Minimum Operating Supply Voltage (V) |
8 |
| Maximum Supply Current (mA) |
2.5 |
| Supplier Temperature Grade |
Extended |
| Typical Input High Threshold Voltage (V) |
2(Min) |
| Typical Input Low Threshold Voltage (V) |
0.8(Max) |
| Reference Voltage (V) |
0.065 |
| Latch-Up Proof |
No |
| Special Features |
Current Limit|Short Circuit Protection |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
SOIC N |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
5(Max) |
| Package Width (mm) |
3.99(Max) |
| Package Height (mm) |
1.5(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5(Max) |
| Package Overall Width (mm) |
6.2(Max) |
| Package Overall Height (mm) |
1.75(Max) |
| Seated Plane Height (mm) |
1.75(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline IC Narrow Body |
| Package Family Name |
SO |
| Jedec |
MS-012AA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ag |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
2 |
|
|
PACKAGING INFO
|
| Packaging Suffix |
TR |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
| Reel Diameter (in) |
13 |
| Reel Width (mm) |
12.4 |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
12 |
| Feed Hole Pitch (mm) |
4 |
| Hole Center to Component Center (mm) |
2 |
| Component Orientation |
Q1 |
| Packaging Document |
Link to Datasheet |
| Tape Type |
Embossed |
|
|

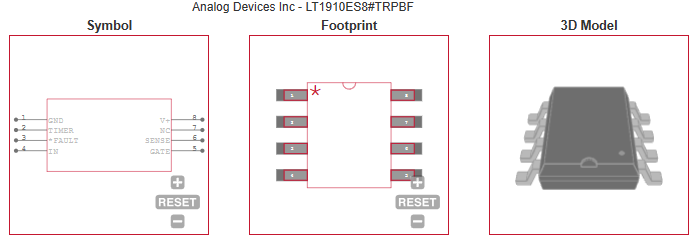

ECAD MODELS
|
|
|
APPLICATIONS
|
• Industrial Control
|
| • Avionics Systems
|
| • Automotive Switches |
| • Stepper Motor and DC Motor Control |
• Electronic Circuit Breaker
|
|
|
| |
