• 8V to 48V Power Supply Range
|
• Protected from –15V to 60V Supply Transients
|
• Short-Circuit Protected
|
• Automatic Restart Timer
|
• Open-Collector Fault Flag
|
| • Fully Enhances N-Channel MOSFET Switches |
| • Programmable Current Limit, Delay Time and
Autorestart Period |
| • Voltage Limited Gate Drive |
• Defaults to Off State with Open Input
|
| • Available in SO-8 Package |
|
| CATALOG |
LT1910IS8#PBF COUNTRY OF ORIGIN
|
LT1910IS8#PBF PARAMETRIC INFO
|
LT1910IS8#PBF PACKAGE INFO
|
LT1910IS8#PBF MANUFACTURING INFO
|
LT1910IS8#PBF PACKAGING INFO
|
LT1910IS8#PBF ECAD MODELS
|
LT1910IS8#PBF APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
| Malaysia |
|
PARAMETRIC INFO
|
| Driver Type |
High Side |
| Number of Drivers |
1 |
| Driver Configuration |
Non-Inverting |
| Input Logic Compatibility |
CMOS|TTL |
| Maximum Operating Supply Voltage (V) |
48 |
| Minimum Operating Temperature (°C) |
-40 |
| Type |
MOSFET |
| Maximum Operating Temperature (°C) |
125 |
| Maximum Turn-Off Delay Time (ns) |
100000 |
| Maximum Turn-On Delay Time (ns) |
400000 |
| Number of Outputs |
1 |
| Minimum Operating Supply Voltage (V) |
8 |
| Maximum Supply Current (mA) |
2.5 |
| Supplier Temperature Grade |
Industrial |
| Typical Input High Threshold Voltage (V) |
2(Min) |
| Typical Input Low Threshold Voltage (V) |
0.8(Max) |
| Reference Voltage (V) |
0.065 |
| Latch-Up Proof |
No |
| Special Features |
Current Limit|Short Circuit Protection |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
|
|

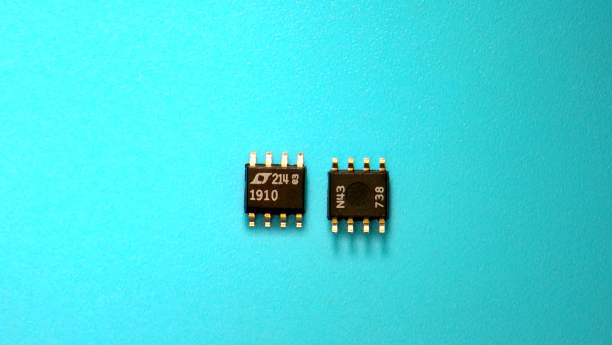

PACKAGE INFO
|
| Supplier Package |
SOIC N |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
5(Max) |
| Package Width (mm) |
3.99(Max) |
| Package Height (mm) |
1.5(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5(Max) |
| Package Overall Width (mm) |
6.2(Max) |
| Package Overall Height (mm) |
1.75(Max) |
| Seated Plane Height (mm) |
1.75(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline IC Narrow Body |
| Package Family Name |
SO |
| Jedec |
MS-012AA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ag |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/A |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Quantity Of Packaging |
100 |
|
|

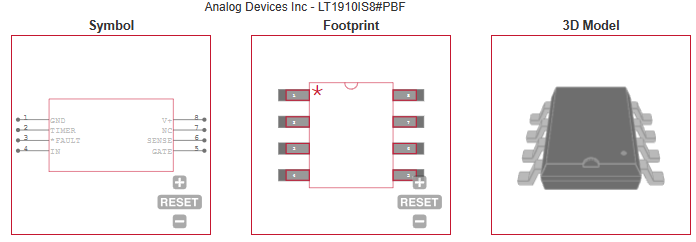

ECAD MODELS
|
|
|
APPLICATIONS
|
• Industrial Control
|
| • Avionics Systems |
• Automotive Switches
|
• Stepper Motor and DC Motor Control
|
| • Electronic Circuit Breaker |
| |
